Product Overview

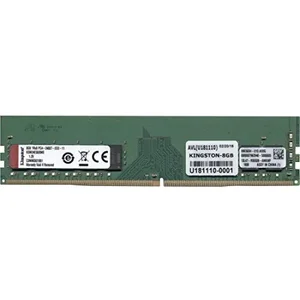

Kingston's KSM24ES8/8ME is a 1G x 72-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Technical Specifications
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
46.16ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
TBD WNOTE
UL Rating
94 V - 0
Operating Temperature
0oC to +85oC
Storage Temperature
-55oC to +100oC
NOTE
Power will vary depending on the SDRAM used.
Item Dimension (L inchxW inchxH inch)
3 x 7 x 1
Weight
1.00lb
Warranty Information
Lifetime
