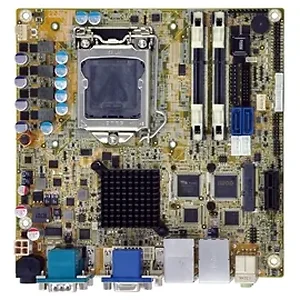

Iei Technology KINO-DH810-R10 IEI KINO-DH810-R10 Mini-ITX Motherboard with LGA1150 Socket

Out of Stock
Condition: New

$246.35  $332.57
 Free Shipping for this Item

Product Overview

The IEI KINO-DH810-R10 is a versatile mini-ITX motherboard designed for Intel's 4th generation Core processors. It supports LGA1150 socket CPUs, including Core i7, i5, i3, Pentium, and Celeron. This motherboard is ideal for embedded applications and provides robust features such as dual LAN support, multiple display interfaces, and expansion slots for additional functionalities.

With excellent memory support and a variety of connectivity options, it is perfect for both commercial and industrial use.

Technical Specifications

  • CPU: LGA1150 Intel 4th generation Core i7/i5/i3, Pentium or Celeron processor supported
  • System Chipset: Intel H81
  • BIOS: UEFI BIOS
  • System Memory: Two 204-pin 1600/1333MHz dual-channel DDR3 and DDR3L SDRAM unbuffered DIMMs support up to 16GB
  • Ethernet: Dual LAN: Intel I211-AT PCIe controller
  • I/O Interface: 1 x 6-pin wafer for PS/2 KB/MS, 1 x RS-422/485, 5 x RS-232, 2 x SATA 6Gb/s, 2 x USB 3.0 (2 on rear I/O), 6 x USB 2.0 (2 on rear I/O, 4 by pin header)
  • Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
  • Super I/O: Fintek F81866
  • TPM: 1 x TPM connector (2x10 pin)
  • SMBus: 1 x 4-pin wafer
  • Audio: Realtek ALC662 HD audio codec
  • Display Interfaces: VGA (up to 1920x1200 at 60 Hz), DVI-D (up to 2560x1600 at 60 Hz), iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 at 60 Hz)
  • Expansion: 1 x PCIe x1 slot, 1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)
  • Watchdog Timer: Software programmable, support 1 to 255 sec system reset
  • Power Supply: 12V only DC input
  • Power Consumption: +12V at 6.03A (Intel Core i7-4770K 3.90 GHz CPU with two 1333MHz 4GB DDR3 memory)
  • Graphics: Intel HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 full MPEG2, VC1, AVC Decode
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -30°C to 70°C
  • Humidity: 5 percent to 95 percent, non-condensing

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • IEI TECHNOLOGY
  • KINO-DH810-R10
  • 885291004438
  • New
  • 1.98 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Iei Technology • Part #: KINO-DH810-R10 • UPC: 885291004438 • Category: Motherboards
