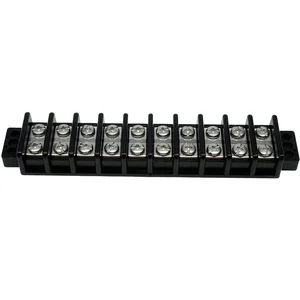

2230-10 - Egis Mobile Electric Egis 30A Marine Terminal Block - 10 Circuits

30 Amp Marine Terminal Block - 10 Circuits

• Constructed with marine-grade materials for enhanced durability in harsh environments.
• Features screw terminal connections, providing reliable input and output connections via copper alloy bus bars.
• Compatible with 125 Volt AC or DC systems, supporting 12, 24, 36, and 48 Vdc as well as 120/240 Vac applications.

Key Features:

• Screw terminal connection pairs allow for easy wiring with one input and one output per pair.
• Designed with high-quality tin-plated copper alloy conductors and stainless steel hardware for robust construction.
• Rated for 125 Volt AC or DC, efficiently managing various voltage applications.
• Anti-rotation ribs prevent wire terminal rotation, ensuring a stable connection even under strain.
• High insulation walls safeguard against splicing short circuits with adjacent circuits or ground.
• Constructed with high-temperature insulation material, guaranteeing resilience and safety in extreme conditions.
• 4-Year warranty demonstrates confidence in the product's long-term performance.

The Egis 30A Marine Terminal Block (part number 2230-10) is a 10-circuit terminal block designed for reliable power distribution in demanding environments. Constructed with marine-grade materials, it features tin-plated copper alloy conductors and stainless steel hardware for enhanced durability and corrosion resistance. This unit is suitable for IT and industrial applications requiring robust electrical connections in harsh conditions, such as marine, vehicle, or outdoor installations. It supports 125 Volt AC or DC systems, including 12, 24, 36, and 48 Vdc, as well as 120/240 Vac applications. Each circuit utilizes screw terminal connections with one input and one output, facilitating straightforward wiring. Key features like anti-rotation ribs and high insulation walls contribute to connection stability and prevent short circuits, making it a practical choice for managing multiple power lines safely.
