| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | JD118BST |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |

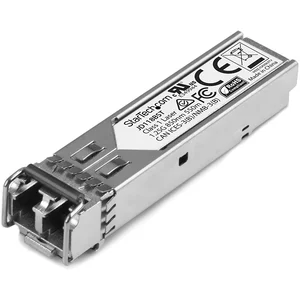

| Product Name | HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX |
| Technical Specifications | |
| Wavelength | 850 nm |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Type | Multi Mode Fiber |
| Connection Type | LC Connector |
| Maximum Transfer Distance | 550 m (1804 ft) |
| MTBF | 3,381,761 hours |
| Power Consumption | Less than 1 Watt |
| Digital Diagnostics Monitoring (DDM) | Yes |
| StarTech.com SFPs | |
| Packaged Quantity | 1 |
| Product Type | SFP (mini-GBIC) |
| Technical Information | Application/Usage: |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Physical Characteristics | Form Factor: |
| Height | 0.5" |
| Width | 0.5" |
| Depth | 2.2" |
| Weight (Approximate) | 0.04 lb |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| HPE Switches | 5900 |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
