The 27V Surge Protector is designed for use with 66 blocks, providing essential protection for voice, fax, and modem lines. It is UL listed for both primary and secondary applications and features a 350mA fuse that safeguards your equipment while allowing for efficient signal transmission.
With dual indicator lights for Protection OK and Ground Connection OK, users can easily monitor the operational status. The solid-state design allows for single pair protection, ensuring that only the lines that require protection are affected.
This surge protector is ideal for retrofit applications. Installation is simple: just remove the bridging clips from the block, replace them with the surge protector, connect the ground, and the pair is up and running. It requires field-installed solid copper wire for grounding, with a recommended grounding impedance of less than 0.5 Ohm.
The surge protector provides fast response times within 1-5 nanoseconds and features low capacitance of less than 50pF. It supports metallic and longitudinal suppression modes and protects two wires from a single pair.

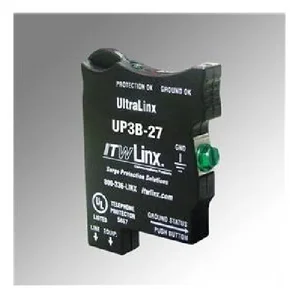

Itw Electronic Component Solutions ITW-UP3B-27 27V Primary/Secondary Surge Protector - 66 Block
