Product Overview
ND USB CONTROLLER, VGA, INTERNAL POWER, DC POWER CONNECTOR, SPEAKERS, -5 TO 90 D
Technical Specifications
Product Name

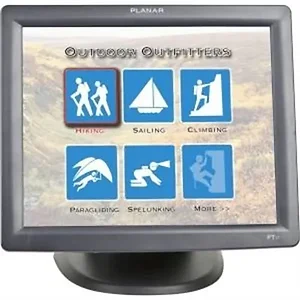

PT1700MX
Viewable Size
17" diagonal (13.30" horizontal x 10.64" vertical)
Touchscreen Type
5-wire Resistive
Number of Touch Points
1
Touchscreen Interface
Dual Serial/USB Transmissivity
80+/-2%
Contrast Ratio (typ)
800:1
Viewing Angle (typ)
170 horizontal, 160 vertical
Response Time (typ)
5 ms (3.6 ms rise, 1.4 ms fall) Brightness (w/touchscreen)
240 cd/m
Brightness (w/o touchscreen)
300 cd/m
Display Type
LCD Active Matrix Flat Panel Display (TFT)
Display Resolution
1280 X 1024 Tilt Range
-5 to 90
Palette
16.7 million colors
Pixel Pitch
0.264 mm
Refresh Rate
56-76 Hz
Panel Depth
2.9" Dimensions (W x H x D)
15.8" x 14.6" x 8.9" (400 mm x 370.6 mm x 225 mm)
Display Weight
17.2 lbs (7.8 kg)
Video Inputs
Analog Audio Output
2 speakers, 1W/ch
Compatibility
Windows 8, 7, Vista, XP, XP Embedded, CE, 2000, ME, 98 Linux Apple Mac OS
External Connections
D-sub 15 pin, DC power connector, Type B socket USB Power Supply
Internal AC power supply,12V DC power connector (Optional DC power supply may be sourced separately)
Power Requirements
100-240 VAC
Power Consumption (max)
20.7W (1.5W standby, 0.6W off) Operating Temperature
0 to +40 C
VESA Compatible/Location
Built-in 75mm and 100mm VESA, back
Options / Features
Anti-glare coating, Multi-language support, On screen display Product Approvals
UL/c-UL, FCC-Class B, CE, RoHS
In the Box
PT1700MX 17" Touchscreen LCD Monitor, Power Cord, VGA Cable, RS-232 Cable, USB Cable (A to B), Audio-in Cable, Driver CD, Users Guide, Quick Start Guide Item Dimension (L"xW"xH"):
15.8 x 14.6 x 8.9
Weight:
19 lb
Warranty Information:
3 Years
