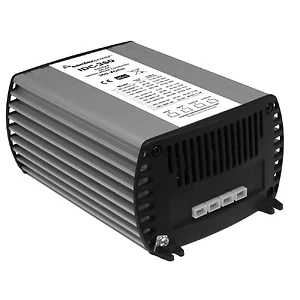

IDC-360B-24 - Samlex America 360W Isolated DC Converter - 24V

360W Isolated DC-DC Converter - 15A - 24V Output

The IDC-360 series offers a high-efficiency 360 Watt isolated DC-DC converter designed for applications demanding galvanic isolation. The IDC-360B-24 model delivers a well-regulated output of 24.5 Volts within an input range of 20-35 Volts, supporting a maximum output current of 15 Amps. This converter features a compact design along with comprehensive protection mechanisms, including fold-back current limiting, short circuit protection, overheating protection, overvoltage protection, and reverse polarity protection. It incorporates 1/4� push-on flat blade connectors for easy installation and is compliant with EMI/EMC regulations.

Specifications:

• Input Voltage: 20-35 VDC
• Output Voltage: 24 VDC
• Power: 360 Watts
• Output Current: 15 Amps
• Weight: 3.1 lbs (1.4 kg)
• Dimensions: 5.23 x 7.5 x 3.27 in (132.8 x 190.5 x 83 mm)
• Safety Certification: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 24 Volt lighting systems
• AM/FM sound systems
