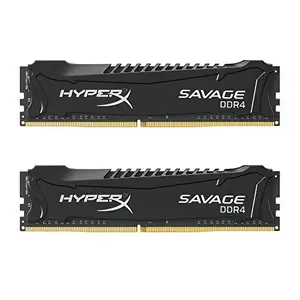

Kingston HX428C14SB2K2/16 Memory HX428C14SB2K2/16 16GB (2x8GB) DDR4-2800 Unbuffered HyperX Savage Retail

HyperX HX428C14SB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 2Rx8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel® XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

XMP TIMING PARAMETERS

• JEDEC: DDR4-2133 CL15-15-15 @1.2V
• XMP Profile #1: DDR4-2800 CL14-16-16 @1.35V
• XMP Profile #2: DDR4-2666 CL14-15-15 @1.35V

CL(IDD)
15 cycles

Row Cycle Time (tRCmin)
46.05ns(min.)

Refresh to Active/Refresh Command Time 1x mode (tRFCmin)
260ns(min.)

Row Active Time (tRASmin)
33.00ns(min.)

Maximum Operating Power
TBD

UL Rating
94 V - 0

Operating Temperature
0^oC to +85^oC

Storage Temperatur
-55^oC to +100^oC

Item Dimension (L inchxW inchxH inch)
3 x 1 x 1

Weight
1.00 lb

Warranty Information
lifetime Manufacture Warranty
