000-14542-001 - Navico Group Lowrance Halo 20+ Radar

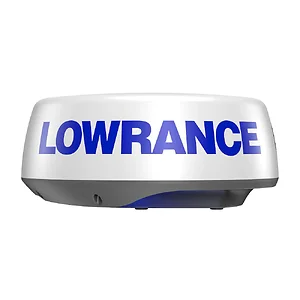

Lowrance Halo 20+ Radar

• 36 nm range from a compact 20-inch dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Ready instantly from standby

Perfect for a wide range of coastal bay boats, HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

HALO20+ radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.

VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO20+ Radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20+ Radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

Harbour, Offshore, Weather, Bird, and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly — even in the toughest environmental conditions.

The Lowrance Halo 20+ Radar, part number 000-14542-001, is a compact 20-inch dome radar system designed for coastal and bay boats. It provides detection capabilities across short, mid, and long ranges, up to 36 nautical miles. This unit utilizes advanced pulse compression technology with beam sharpening, which enhances target separation. It supports Simultaneous Dual Range operation, allowing users to monitor both close-range collision hazards and distant weather patterns concurrently. For collision avoidance, the system incorporates Ultra-fast 60 RPM operation at ranges up to 1.5 nm for near real-time updates, and VelocityTrack� Doppler technology to identify target movement. The Halo 20+ Radar includes pre-set modes such as harbour, offshore, weather, and bird, simplifying operation for various conditions. It also features MARPA target tracking for up to 10 targets, or 20 in dual range mode, and offers instant readiness from standby.
