2 Available
Condition: New

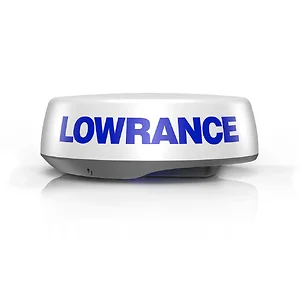

Lowrance Halo 24 Radar Dome
Model: 00014541001Lowrance HALO 24" Pulse compression dome radar, with industry-first 60 RPM operation. Built in VelocityTrack™ Doppler technology, simultaneous short and long-range coverage up to 48 nautical miles from one compact 24-inch dome antenna.
HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Specifications| Operating Temperature | -25° to +55°C (-13° to +130°F) |
| Relative humidity | +35° C (95° F), 95% RH |
| Waterproof | IPX6 |
| Max relative wind velocity | 51 m/sec (100 Knots) |
| Complience | CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002 |
| Power consumption (with 10m cable) | Operating: 14.5 to 27W at 13.8 V |
| Standby | 3.9 W (Typ.) at 13.8 V DC ~ 170 mA |
| DC input (at end of radar cable) | 9 V to 31.2 V DC (12/24 V systems) |
| Reverse polarity protection | Yes |
| Minimum startup voltage | 10.75 V DC |
| Transmitter source (pre-heating time) | No magnetron — Instant On |
| Outside dimensions | Diameter 610 mm (24"), Height 225 mm (8.9") |
| Scanner weight (no cable) | 6.75kg (14.9 lbs) |
| Radar ranges | 100 m (328 ft) to 48nm with 18 range settings, (nm/sm/km) |
| Rotation (mode dependent) | 20 - 60 rpm (mode and MFD dependent) |
| Transmitter frequency | X-band - 9.4 to 9.5 Ghz |
| Transmitter source (warm-up time) | No Magnetron — all solid state. Instant On |
| Plane of polarization | Horizontal Polarization |
| Transmitter peak power output | 25W |
| Minimum range | 6 m (19.7 ft) |
| Sweep repetition frequency | 700-2400 Hz (mode dependent) |
| Pulse length | 0.04 - 64 usec |
| Sweep bandwidth | 48 MHz max |
| Horizontal beam width (Tx and Rx antenna) | 3.9° nominal (-3 dB width) |
| Target Seperation Control | OFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal) |
| Vertical beam width (Tx and Rx antenna) | 22° (-3B width nominal) |
| Side lobe level (Tx and Rx antenna) | Below -18 dB (within ±10°);Below -24 dB (outside ±10°) |
| Noise figure | Less than 5 dB nominal |
| Protocol | Ethernet 100 Base T |
| Maximum inter connecting cable length | 30 m (98.5 ft) — available as option, use NEP-2 for longer cable runs |
The Lowrance Halo 24 Radar Dome, part number 000-14541-001, is a compact 24-inch pulse compression radar system designed for marine navigation and collision avoidance. This unit is suitable for commercial and recreational vessels requiring reliable target detection and situational awareness. It offers a maximum range of 48 nautical miles and features advanced pulse compression technology with beam sharpening for clear target separation. The system includes VelocityTrack� Doppler technology, which automatically highlights potential hazards by indicating whether targets are approaching or moving away. With simultaneous Dual Range operation, users can monitor both near and far targets concurrently. The radar achieves an ultra-fast 60 RPM operation at ranges up to 2 nautical miles, providing an almost real-time view for enhanced close-range collision avoidance. Its solid-state transmitter ensures instant readiness from standby, eliminating warm-up times associated with magnetron-based systems.
000-14541-001 - Navico Group Lowrance Halo 24 Radar Dome
