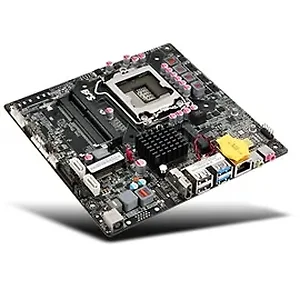

Elite Group H61H2-TI (V1.0) ECS H61H2-TI (V1.0) Pentium/Celeron LGA1155 H61 DDR3 16GB HDMI SATA Mini-ITX Retail

CPU
LGA1155 socket for new 2nd 3rd Generation Intel Core Family/ Pentium /Celeron Processors
Supports Intel 22nm CPU
Supports Intel 32nm CPUs
Supports Intel Turbo boost 2.0 technology
Supports Hyper-Threading Technology CPU
Intel K Series Unlock CPU Support
Intel Secure Key (Intel 3rd gen CPU i5 or above)
Intel OS Guard (Windows 8)
AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
DMI 20Gb/s Chipset
Intel H61 Express Chipset
Intel Identity Protection Technology
Supports dual stream HDMI DP audio Graphics
Intel HD Graphics 2000/3000(Intel 2nd gen CPU) 2500/4000(Intel 3rd gen CPU)
Supports Intel Quick Sync Video 2.0 (Intel 3rd gen CPU), Advanced Vector Extensions, Clear Video HD Technology, InTru 3D
Supports HDMI 1.4a Premium Audio
Integrated DirectX 11 graphics processor
Supports OpenGL 3.1(Intel 3rd gen CPU)
Supports OpenCL 1.1(Intel 3rd gen CPU)
Supports Switchable Graphics
Integrated DP with up to 2560x1600 resolution
Supports Full HD 1080P Blu-ray / HD-DVD Playback Memory
Dual-channel DDR3 memory architecture
2 x 204-pin DDR3 SO-DIMM socket support up to 16GB
Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM
Supports for non-ECC memory modules
Intel Extreme Memory Profile (XMP) 1.3/1.2 Memory Modules Expansion Slots
2 x Mini PCI Express x1 slot (one full size and one half size) Storage
Support by Intel H61
2 x Serial ATA 3.0Gb/s devices
Supports NCQ, AHCI and "Hot Plug" functions Audio
Realtek ALC662 Audio CODEC
Compliant with HD audio specification
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D, A3D, I3DL2
Capability for full rate Bluray / DVD / HD DVD support. LAN
Realtek 8111E 10/100/1000 Fast Ethernet Controller
Supports Wake-On-LAN Rear Panel I/O
2 x USB 3.0 Ports
2 x USB 2.0 ports
1 x HDMI Port
1 x HDMI IN Port (optional)
1 x RJ45 LAN connector
1 x Audio port (Line-out, Mic-in)
1 x DC-IN port Internal I/O Connectors and Headers
2 x USB 3.0 Ports
2 x USB 2.0 ports
1 x HDMI Port
1 x HDMI IN Port (optional)
1 x RJ45 LAN connector
1 x Audio port (Line-out, Mic-in)
1 x DC-IN port System BIOS
AMI BIOS with 64Mb SPI Flash ROMM
Supports ACPI 3.0 DMI
F7 hot key for boot up devices option
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports Multi-language BIOS
Audio, LAN, can be disabled in BIOS
Supports Page Up clear CMOS Hotkey Form Factor
Thin Mini-ITX 170 x 170mm OS Supported
Windows XP 32/64bit
Windows Vista 32/64bit
Windows 7 32/64bit
Windows 8 32/64bit Certifications
CE/FCC Certification
ErP/EuP Certification
WHQL Certification Bundled Software
ECS Intelligent EZ Utility: eBLU, eDLU, eOC, eSF
Free Bundle: Norton Internet Security, CyberLink Media Suite, Muzee with trial version Item Dimension (L"xW"xH")
10 x 8 x 2

Weight
1.40 lb

Warranty Information
2 Years Free Labor and Parts, the 3rd Year Free Parts Only, Charge for Labor
