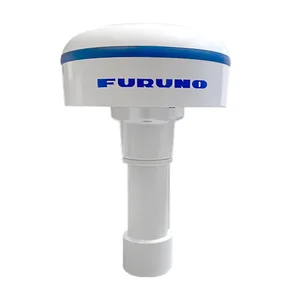

Furuno GP340 Compact High-Precision GNSS Receiver

GP340 Compact GNSS Receiver

High-Performance, Versatile & Reliable Positioning

The GP340 is a state-of-the-art GNSS Receiver tailored for diverse vessels. Featuring a robust 75-channel GNSS core, this compact receiver delivers precise position fixes within 3 meters. It boasts a 10 Hz refresh rate and provides data output in both NMEA2000 and NMEA0183 formats, making it an excellent GPS sensor for integration with systems like NavNet and many others that require high-accuracy GPS solutions for maritime, industrial, and survey applications.

The GP340 Supports:

• GPS (L1/L5)
• GLONASS (L1)
• Galileo (E1/E5)
• QZSS (L1/L5)
• Beidou (B1/B2)

The GP340 is compatible with SBAS systems, including WAAS, EGNOS, MSAS, and GAGAN. It includes all necessary hardware for deck or mast mounting and comes standard with a 6-meter cable featuring an NMEA2000 connector, with an optional NMEA0183 cable available.

Specifications:

• Data Type: NMEA0183 or NMEA2000
• Power Usage: 12-24 VDC
• Receiver Type: GPS, GLONASS, QZSS, SBAS, WAAS, Galileo

*NMEA0183 requires optional cable
