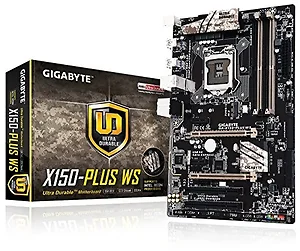

Gigabyte GA-X150-PLUS WS Motherboard GA-X150-Plus WS Core i3 LGA1151 C232 DDR4 PCI Express ATX Retail

CPU
Support for Intel Xeon E3-1200 v5 Processor / Intel Core i3 Processor / Intel Pentium / Intel Celeron Processor in the LGA1151 Package
L3 Cache Caries with CPU Chipset
Intel C232 Chipset Memory
4 x DDR4 DIMM Sockets supporting up the 64GB of System Memory
Dual Channel Memory Architecture
Support for DDR4 2133 MHz Memory Modules
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 Memory Module Audio
Realtek ALC887 Codec
High Definition Audio
2/4/5.1/7.1 Channel
Support for S/PDIF Out LAN
Intel GbE LAN Chip(10/100/1000 Mbit) Expansion Slots
1 x PCI Express x16 Slot, running at x16 (PCIE x16)
1 x PCI Express x16 slot, running at x4 (PCIE x4)
2 x PCI Express x1 slots
2 x PCI Slots Multi-Graphics Technology
Support for 2-Way AMD CrossFire Technology Storage Interface
Chipset:
- 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA PCIe x4/x2/x1 SSD support)
- 6 x SATA 6Gb/s connectors USB
Chipset:
- 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x USB 2.0/1.1 ports
4 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller
iTE I/O Controller Chip H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control BIOs
2 x 64 Mbit Flash
Use of Licensed AMI UEFI BIOs
Support for Dual BIOs
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOs 2.7, ACPI 5.0 Unique Features
Support for APP Center
BIOs
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install Bundle Software
Norton Internet Security (OEM Version)
cFosSpeed Operating Support
Support for Windows 10/8.1 64-Bit
Support for Windows 7 32/64-Bit Form Factor
ATX Form Factor Item Dimension (L"xW"xH")
13 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years
