SKU: MBBW0SV5IR |  Mfg. Part: FOCUS SGX-500 (SSR-500SGX)  |
 1 Reviews  |     Share

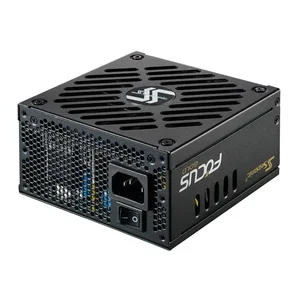

Seasonic FOCUS SGX-500 (SSR-500SGX) FOCUS SGX-500 500W Gold SFX-L Power Supply

Out of Stock
Condition: New

$153.95  $207.83
 Free Shipping for this Item

Product Overview

The Seasonic FOCUS SGX-500 is a compact 500W power supply designed with efficiency and performance in mind. It features an 80 PLUS Gold certification, ensuring high energy efficiency. The full-modular design provides easy cable management, while the SFX-L form factor makes it ideal for small form factor builds. With advanced fan control, it operates silently under low loads and transitions smoothly to cooling mode as needed. Backed by a 10-year warranty, this power supply is built to last.

Technical Specifications

Specifications

  • Features:
    • 80 PLUS Gold certified for high efficiency
    • Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
    • Tight Voltage Regulation for stable power delivery
    • Cable-free Connection Design for improved airflow
    • S3FC technology - Fanless operation until 30% load
    • Expandable from SFX to ATX form factor
    • Gold-plated connectors for enhanced conductivity
    • 10 years warranty for peace of mind
  • Type: Intel ATX12V
  • Total Power: 500 W
  • Input:
    • Voltage: 100 - 240V
    • Current: 6 - 3 A
    • Frequency: 50 Hz - 60 Hz
  • MTBF: 100,000 hours (@ 25°C, excluding fan)
  • Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41A, -12V @ 0.3A, +5Vsb @ 3V
  • Connectors: 1x 20/24pin M/B Connector, 1x 8/4pin CPU Connector, 2x 8/6pin PCI-Express Connectors, 3x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
  • Cooling System: 120mm Fluid Dynamic Bearing Fan
  • Protection: OPP, OVP, UVP, OCP, OTP, SCP
  • Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
  • Dimensions (WxLxH): 125.0 x 125.0 x 63.5 mm

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Seasonic
  • FOCUS SGX-500 (SSR-500SGX)
  • New
  • 4.7 lbs
  • 5 X 5 X 5
  • Feb 19, 2026
  • Sep 12, 2020
Product Identifiers: Brand: Seasonic • Part #: FOCUS SGX-500 (SSR-500SGX) • Category: Monitor Supplies

Seasonic FOCUS SGX-500 (SSR-500SGX) FOCUS SGX-500 500W Gold SFX-L Power Supply

Reviews for Seasonic FOCUS SGX-500 (SSR-500SGX)

$153.95
