Quick FNTCD1022000E00 TCD1022 Thruster Controller

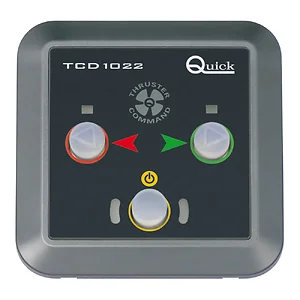

Quick TCD1022 Thruster Push Button Controller

The Quick TCD1022 Thruster Controller is designed for easy operation of bow thrusters, offering a user-friendly interface and robust performance. With a universal power supply ranging from 8 to 30 Vdc, it can function effectively in various environmental conditions. This controller supports multiple connections to other TCD controls and is straightforward to install using a 2-wire connector. It includes features like an automatic priority system, reverse polarity protection, short circuit output protection, and safeguards against prolonged motor activity and wiring interruptions. The product comes with a remote control panel and a user manual.

Specifications:

• Current capacity of thruster commands: 4A max
• Supply voltage: 8 to 30 VDC
• Current absorption at rest: 10 mA
• Operating temperature: -20 to +70 degrees C
• Protection rating: IP66
• Dimensions including frame: 3" 5/64 x 3" 5/64 x 55/64"
