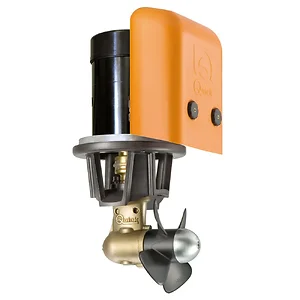

FGBT14040120T00 - Quick Bow Thruster BTQ 140-40 40KGF - 12V - D140 - 2.2kW

Bow Thruster BTQ 140-40 40KGF - 12V - D140 - 2.2kW

Better Performances, Lower Absorption

The 4-blade Propellers guarantee maximum thrust performance and reduction in current absorption. They are made of composite materials, resistant in every condition. The counter-rotating system offers better thrust performances. The two props have been designed to suit left side and right side, to guarantee the same upper performances in both directions.

Features:

• The Gearbox is created so that the behavior of the propeller is unaffected in either direction.
• The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
• Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.
• The anodic aluminum protection is easily replaceable. In case of total corrosion of the anode, the prop doesn’t get lost because it’s fixed directly to the pod, independently from the anode.
• The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.

The Motors

New-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application.

Top Safety

In case of relays’ melting, the TMS remote circuit breaker system switch-off the power to the motor from any place where a TDC panels or a TSC emergency mushroom panels are installed. Motor temperature sensor BTQ motors don’t need the thermic sensor to be able to always provide the maximum power when needed. The overheating protection is controlled by the software inside the touch panel or the joystick panel.

The Quick Bow Thruster BTQ 140-40 is a maritime propulsion unit designed to provide lateral thrust for vessels. This 12V system, identified by part number FGBT14040120T00, delivers 40KGF of thrust with a 2.2kW motor and a D140 diameter. It is engineered for marine applications requiring precise maneuverability. The unit features 4-blade composite propellers, designed for both left and right side operation, and a counter-rotating system to optimize thrust performance while managing current absorption. Its gearbox is designed for consistent performance in both directions, and the bronze propeller gearleg incorporates a hydrodynamic profile to minimize turbulence. The system includes an elastic joint for motor-gearbox alignment and an easily replaceable anodic aluminum protection. Maintenance is not required for the lubrication seal. Safety features include the TMS remote circuit breaker system for power cut-off and software-controlled overheating protection, eliminating the need for a separate motor thermic sensor. This thruster is suitable for IT buyers procuring specialized marine hardware for vessel integration or maintenance.
