3 Available
Condition: New

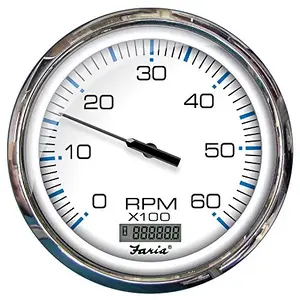

Chesapeake White SS 5" Tachometer w/Digital Hourmeter - 6000 RPM (Gas) (Inboard)
Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.
Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12vDC, Ground and one of the signal sources listed above.
By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.
5" - Hole size: 4.375" (112mm)
Specifications:
Factory P/N TC9381
*Sold as an Individual
**Gauge Cover not Included
The Faria Beede Instruments 33863 Chesapeake White SS 5" Tachometer with Digital Hourmeter is designed for monitoring engine RPM and total operating hours in gas-powered inboard marine applications. This unit provides a 0-6000 RPM scale for engine speed and a digital hourmeter with a 0-10000 hour range. It operates on 12 VDC negative ground systems and can be adapted for 24 VDC systems. The tachometer functions by counting pulses from an ignition system, alternator, tach signal generator, or magnetic pickup sender, with a selectable switch on the back to match engine revolutions to pulse count. Featuring a perimeter-lighted white dial, polished stainless steel bezel, and anti-scratch domed glass lens, it is suitable for marine environments requiring clear, reliable engine data.
5 Tachometer with Digital Hourmeter (6000 RPM) Gas (Inboard) Chesapeake White with Stainless Steel
Hole Size: 5
Perimeter-lighted black dial with bold white graphics, black aluminum SAE style bezel, contoured white pointer and flat glass lens.
Electronic tachometers work by counting pulses generated by the ingition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12vDC, Ground and one of hte signal sources listed above.
By selecting the right tach and setting the switch on the back to the correct postion you let the tachometer know how many pulses are sent per each engine revolution.
Features:
This tachometer is designed for use with gas (inboard) engines, as indicated by its 6000 RPM scale and specific product designation.
The required hole size for mounting this 5" tachometer is 4.375 inches (112mm).
No, a gauge cover is not included with the purchase of this tachometer.
The tachometer operates on 12 VDC negative ground systems, but it can be adapted for use with 24 VDC systems.
33863 - Faria Beede Instruments Faria Chesapeake White SS 5" Tachometer w/Digital Hourmeter - 6000 RPM (Gas) (Inboard)
