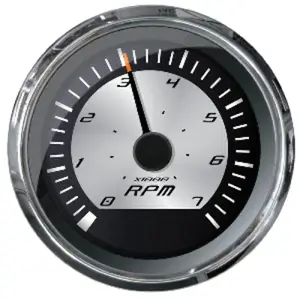

22009 - Faria Beede Instruments Platinum 4 Tachometer - 7000 RPM (Gas - Inboard, Outboard & I/O)

Platinum 4" Tachometer - 7000 RPM (Gas - Inboard, Outboard & I/O)

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.

By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.

4" - Hole size: 3.375" (85mm)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N TC8511

*Sold as an Individual

*Gauge Cover not Included

The Faria Beede Instruments Platinum 4 Tachometer, part number 22009, is an electronic RPM gauge designed for gas-powered inboard, outboard, and I/O engines. This instrument is suitable for businesses that require precise engine speed monitoring in marine or similar operational environments. It functions by interpreting pulses from an ignition system, alternator, tach signal generator, or magnetic pickup sender, requiring a +12VDC and ground connection. The tachometer features a 7000 RPM range and a 4-inch diameter with a 3.375-inch (85mm) hole size for installation. Its construction includes a spun aluminum dial, a polished stainless steel bezel, and a domed glass lens engineered to resist fogging and scratching. Illumination is provided by blue LED lighting around the dial perimeter and an illuminated fire-orange tip pointer, enhancing visibility in varied lighting conditions.
