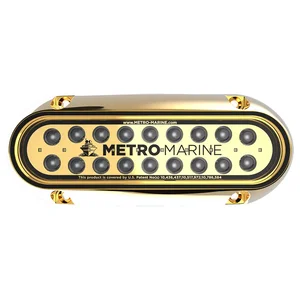

F-BME1-H-B3-90 - Metro Marine Blue High-Output Underwater Light - 90° Beam

Metro Marine Blue High-Output Underwater Light - 90° Beam

The Metro Marine F-Series underwater lighting fixture is engineered for installation at depths up to 4.6M (15') below the water's surface, delivering a striking Blue light. Crafted with watertight aluminum bronze housings and silicon bronze hardware, these luminaires are ideal for various marine applications, including yachts, docks, and fountains. The innovative design features 18 High-Output LEDs per fixture, which allow for close positioning of multiple fixtures while ensuring uniform light distribution.

Designed for mid- to large-scale structures, the F-BME1-H-B3-90 model utilizes a 90° optical lens to provide efficient lighting for yachts ranging from 10M (32') to 30M (100'), ensuring excellent color control and efficiency.

Clear Lens Technology

To combat biofouling that can diminish light output and cause overheating, Metro Marine's patent-protected UVC LEDs keep the lenses of our fixtures crystal clear.

Anti-Condensation Assembly Methodology

To address the critical issue of condensation, which can lead to internal corrosion, our fixtures are manufactured in a Class 1000 Clean Room using a patent-pending assembly methodology that ensures they remain free of condensation.

Technical Specifications:

• Beam Angle: 90°
• Input Voltage: 10VDC-30VDC
• Power Consumption: 45.5W
• Dimensions: 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight: 2.42 lbs
• Lens Material: Clear Quartz
• Operating Temperature: -40 to 122°

The Metro Marine Blue High-Output Underwater Light (part number F-BME1-H-B3-90) is an underwater lighting fixture designed for marine environments. It provides a 90° blue light beam and is suitable for installation at depths up to 4.6 meters (15 feet). The unit features a watertight aluminum bronze housing and silicon bronze hardware, engineered for durability in saltwater applications. This light is equipped with 18 High-Output LEDs, facilitating uniform light distribution for mid- to large-scale structures such as yachts between 10 meters (32 feet) and 30 meters (100 feet), docks, and fountains. Its Clear Lens Technology utilizes UVC LEDs to mitigate biofouling, while a patent-pending anti-condensation assembly methodology, performed in a Class 1000 Clean Room, addresses internal corrosion risks. The fixture operates on 10VDC-30VDC input with a power consumption of 45.5W.
