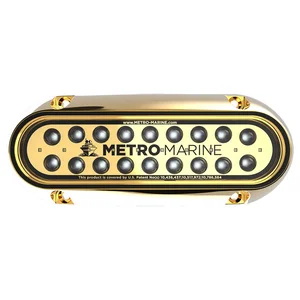

F-BME1-H-B3-45 - Metro Marine High-Output Underwater Light - Blue LED, 45° Beam

High-Output Underwater Light - Blue LED, 45° Beam

The F-Series underwater lighting fixtures are engineered for installation at depths of up to 4.6M (15') beneath the water's surface, delivering brilliant Blue illumination. Built with watertight aluminum bronze housings and silicon bronze hardware, these lights are ideal for marine applications, including yachts, docks, sea walls, and aquatic installations in fountains and theme parks. The innovative 18 H.O. LED array allows for close fixture placement, ensuring uniformly mixed and vibrant lighting.

The F-BME1-H-B3-45 model features a 45° optical lens optimal for illuminating mid to large structures and yachts ranging from 10M (32') to 30M (100'), while maintaining high efficiency and uniform color control.

Clear Lens Technology

One common issue with underwater lights is biofouling, which can obstruct light output and lead to overheating. Metro Marine has patented a system using UVC LEDs to keep the lens surfaces clear of growth, ensuring sustained performance.

Anti-Condensation Assembly Methodology

Internal condensation poses a significant risk, potentially leading to corrosion and fixture failure. Our patent-pending manufacturing process, developed in a Class 1000 Clean Room, eliminates condensation entirely, guaranteeing durability and long-lasting performance.

Technical Specifications:

• Beam Angle - 45°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 45.5W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 2.42 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

The Metro Marine High-Output Underwater Light, part number F-BME1-H-B3-45, is a specialized lighting fixture designed for submerged installations. This blue LED light is engineered for depths up to 4.6 meters (15 feet) and features a 45-degree beam angle, making it suitable for illuminating mid to large structures and yachts between 10M (32') and 30M (100'). Its construction utilizes watertight aluminum bronze housings and silicon bronze hardware, ensuring durability in marine environments such as docks, sea walls, and various aquatic installations. A key feature is its patented UVC LED technology, which actively prevents biofouling on the lens, maintaining consistent light output. Additionally, a patent-pending manufacturing process, developed in a Class 1000 Clean Room, eliminates internal condensation to prevent corrosion and fixture failure. The unit operates on 10VDC-30VDC, consumes 45.5W, and weighs 2.42 lbs, providing a robust solution for demanding underwater lighting requirements.
