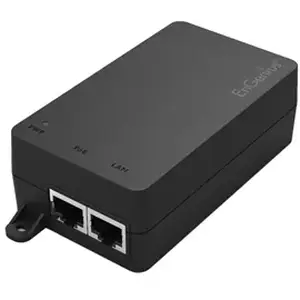

- Ideal for connecting APs, IP Cameras, VoIP phones & more- Optimal port design for easy mounting/positioning- Compact design; sends up to 30W of output power- Extends power to unwired areas up to 328 ft./100 m- Gigabit Ethernet in & out ports for high-speed devices- Disconnect, short-circuit & surge protection ensures reliable, secure connection- Mounts to walls or ceilings with included hardware- Input Voltage: 100-240 VAC- Maximum Output Power: 30W
Technical Specifications
Power Input Voltage: 100 to 240V AC Input Current: 0.8A Maximum for 100V AC AC Input Frequency: 47 to 63 Hz Maximum Output Power: 30W Pin 4: 5.54V, Pin 7/8: Return Data Compatible with 10/100/1000 Mbit/s Ethernet, full duplex Environment Operating Temperature: 0 C to 40 C (32 F to 104 F) Storage Temperature: -30 C to 80 C (-22 to 176 F) Operating Humidity: 5 to 90% Under Non-Condensing Additional Features Over Voltage and Over Current Protection Short Circuit Protection Physical Interface 1 x 10/100/1000 Data input 1x10/100/1000 Data power output 1x IEC 320C6 AC connector LED Indicators Power On: Green Mounting Mounts to Walls (Anchors and Screws Included) Regulatory IEC 60950-1: 2005 + A1 UL60950-1 EN55022:2010 EN55024:2010 FCC Part 15 Class B AS/NZ60950-1 Item Dimension (L"xW"xH") 5.4 x 4.8 x 2
