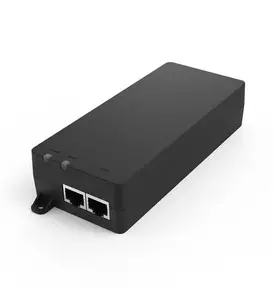

EPA5090XBT - Engenius 90W 10GB SINGLE-PORT POWER-OVER-ETHERNET (POE++) ADAPTER

Technical Specifications

Power Specification

• Input Voltage: 100 ~ 240VAC
• Input Current: 0.95A @ 120V AC, 0.5A @ 240V AC
• Input Frequency: 50-60Hz
• Maximum Output Power: 90W
• Powerline: Pin4 (Vdc+) & Pin5 (Vdc+), Pin7 (Vdc-) & Pin8 (Vdc-)

Data Specification

• Ethernet Port Standards: IEEE 802.3af/at/bt compliant
• Data Lines: Pin 1 (Rx+) & Pin 2 (Rx-), Pin 3 (Tx+) & Pin 6 (Tx-)

Protection Level

• Surge Protection: L-L: 2KV, L-G: 4KV
• ESD: Contact 4KV; Air: 8KV
• Other Protection: Over-voltage and Over-current protection; Short-circuit protection

Physical Interfaces & Indicators

• Network Ethernet Ports: 1x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data Input; RJ-45
• 1x 10/100/1000Mb & 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45
• Power Source AC Connector: 1x IEC-320 C6 AC Connector
• LED Indicators: Power On: Green; PoE On: Green

Environmental & Physical

• Temperature Range: Operating: 32°F to 104°F (0°C to 40°C), Storage: -4°F to 158°F (-20°C to 70°C)

Package Contents

• 1x PoE Adapter
• 1x Quick Installation Guide (Printed on side of Box)
• 1x Power Cord - 16 inches (40.64cm)

Dimensions & Weights

• Device (Without Mounting Kit): Weight: 12.5oz (354g), Length: 5.9in. (150mm), Width: 2.56in. (65mm), Height: 1.34in. (34mm)
• Packaging: Weight: 16.6oz (470g), Length: 7in. (178mm), Width: 3.54in. (90mm), Height: 2.8in. (72mm)
• Master Carton: Weight: 10kg (22 lbs.), Length: 367mm (14.4in.), Width: 187mm (7.36in.), Height: 374mm (14.7in.), No. of boxes per Master carton: 20 Units

Certifications

• IEC 62328-1:2014
• UL 62328-1
• FCC Subpart 15 Class B
• EN 55032:2012 / AC:2013
• EN 55024:2010

Warranty

1 year

The EnGenius EPA5090XBT is a single-port Power-over-Ethernet (PoE++) adapter designed for IT environments requiring high-power delivery over Ethernet cabling. This adapter provides up to 90W of output power, making it suitable for powering devices compliant with IEEE 802.3af, 802.3at, and 802.3bt standards. It supports data rates up to 10Gbps across its RJ-45 input and output ports, accommodating modern network infrastructure needs. The unit features built-in surge and ESD protection, alongside over-voltage, over-current, and short-circuit safeguards, to enhance network reliability and device longevity. It is intended for businesses deploying high-power PoE devices such as Wi-Fi 6 access points, PTZ cameras, or thin clients in scenarios where direct AC power is unavailable or impractical. The EPA5090XBT helps streamline installations by consolidating power and data delivery over a single cable.
