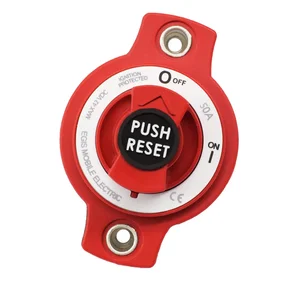

4701-50 - Egis Mobile Electric Egis 50A Panel Mount Circuit Breaker & Disconnect Switch

50A Panel Mount Circuit Breaker & Disconnect Switch

This dual-function 50A panel mount circuit breaker serves as both a circuit breaker and a disconnect switch. Primarily designed for trolling motor applications, it provides essential circuit protection and reliable battery disconnect switching.

Applications:

• Protects electrical systems from damage caused by short circuits and over-current conditions.
• Combines automatic circuit protection with manual on/off capability for enhanced functionality.
• Facilitates circuit isolation and maintenance near battery systems, regardless of location.

Features:

• IP66 rated for dust and water protection, ensuring long-lasting circuit integrity.
• Supports 12V, 24V, and 36V DC applications with a maximum voltage of 42V.
• Endures up to 2,000 manual switching cycles at full current.
• High interrupt capacity to safeguard large battery bank connections.
• Backed by a 4-year warranty for user assurance.

Specifications:

• Continuous Current: 50 Amps
• Maximum Voltage: 42 Volts
• CE Marked: Yes
• Interrupt Current @ 14 VDC: 3,000 Amps
• Cycle Switching Endurance: 3,000 cycles
• Ingress Protection Rating: IP66

Focal Features:

• Easy ON/OFF Rotary Switch: Simple to use and easily indicates switch position.
• Stainless Steel Self-Locking Hardware: Resists corrosion and vibration for durability in challenging environments.
• Weatherproof Construction: Protected against dust and moisture with high-temperature resilience.
• Compact Size: Maximizes panel space for circuit protection without bulk.
• Proudly Made in the USA: Quality components manufactured in the United States.
• Ignition Protected: Guards against unintentional shorts from positive terminals to grounded surfaces.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

The Egis 50A Panel Mount Circuit Breaker & Disconnect Switch provides dual-functionality for electrical system protection and control. This unit combines automatic circuit protection against short circuits and over-current conditions with a manual on/off disconnect switch. It is designed for 12V, 24V, and 36V DC applications, supporting up to 42V maximum. Primarily suited for trolling motor setups, it also facilitates circuit isolation and maintenance near battery systems. The device features an IP66 rating for dust and water protection, stainless steel self-locking hardware for durability, and an easy ON/OFF rotary switch. With a continuous current rating of 50 Amps and an interrupt current of 3,000 Amps at 14 VDC, this component, part number 4701-50, offers a reliable solution for managing power circuits in demanding environments.
