Product Overview

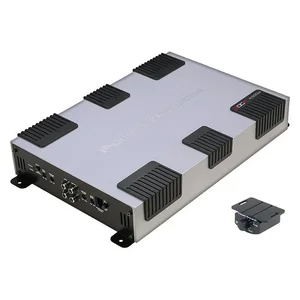

The Edge Series Class D Monoblock Amp (4,500 Watts max) is the next step in performance and value, continuing down the Power Acoustik road of reliability and longevity. A satin silver chassis, engraving and edge accents bring a high-end appeal to traditional performance. This monoblock amp includes a dash-mount control. FeaturesClass D monoblock1 stable monoblock operation for max power2 amps bridgeable for double powerMilitary-grade PCB with PWM MOSFET power supplyDirect short, thermal & overload circuit protectionHigh/speaker-level & low-level/RCA inputs200mV–6V low-level RCA input4-gauge power wire & 8-gauge speaker wire outputsVariable 12dB high- & low-pass crossovers12dB bass boost & 180° phase shift increase & improve low-octave harmonicsIncludes dash-mount gain control4,500W max750W RMS x 1 @ 4 1,500W RMS x 1 @ 2 2,250W RMS x 1 @ 1 bridgedSpecificationsColor: GraySeries Name: EdgeBattery Information: Product does not require a batteryDimension: 2.25" H x 13" W x 9" DWeight: 10.15 lbs- SKU: PETRA16115
Technical Specifications
? Class D monoblock;? 1ohm stable monoblock operation for max power;? 2 amps bridgeable for double power;? Military-grade PCB with PWM MOSFET power supply;? Direct short, thermal & overload circuit protection;? High/speaker-level & low-level/RCA inputs;? 200mV-6V low-level RCA input;? 4-gauge power wire & 8-gauge speaker wire outputs;? Variable 12dB high- & low-pass crossovers;? 12dB bass boost & 180deg phase shift increase & improve low-octave harmonics;? Includes dash-mount gain control;? 4,500W max;? 750W RMS x 1 @ 4ohm ;? 1,500W RMS x 1 @ 2ohm ;? 2,250W RMS x 1 @ 1ohm bridged;? Dim: 2.25H x 13W x 9D;
