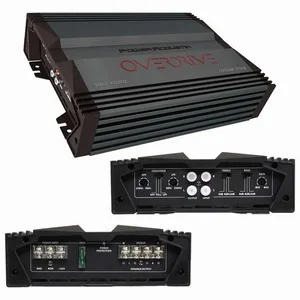

OD21000 - Power Acoustik 1000W 2-Channel Class A/B Amplifier

This Power Acoustik Overdrive Class A/B 2 Channel Amplifier delivers exceptional sound performance with a robust power output of 400W RMS and a peak of 1000W MAX.

Key specifications include:

• 200 x 2 RMS at 2 Ohms
• 120 x 2 RMS at 4 Ohms
• 400 x 1 RMS at 4 Ohms (Bridged)
• Dimensions (W x H x L): 7.25" x 2.5" x 10"
• Fuses: 1 x 30A

This amplifier is designed for 2 Ohm stability and features a military-grade PCB and PWM MOSFET power supply. It is bridgeable and comes equipped with direct short, thermal, and overload circuit protection for enhanced reliability.

Variable 12dB crossovers allow for tailored sound with:

• Low Pass Crossovers: 50 - 250 Hz
• High Pass Crossovers: 120 - 3 kHz

Additional features include RCA in/outputs and bass boost options of 0/+6/+12dB, making it a versatile choice for any car audio setup.

The Power Acoustik 1000W 2-Channel Class A/B Amplifier, part number OD21000, is designed for integrating into automotive audio systems requiring reliable power delivery. This unit provides a continuous output of 400W RMS, with a peak capability of 1000W MAX. It supports 2 Ohm stable operation, offering 200W x 2 RMS at 2 Ohms, 120W x 2 RMS at 4 Ohms, or 400W x 1 RMS when bridged at 4 Ohms. Key features include a military-grade PCB, a PWM MOSFET power supply, and integrated protection against direct short, thermal events, and overloads. Variable 12dB crossovers (Low Pass: 50-250 Hz; High Pass: 120-3 kHz) allow for sound tuning. It includes RCA inputs/outputs and selectable bass boost. This amplifier is suitable for IT professionals or businesses managing vehicle fleets or custom installations where consistent audio performance and protection features are priorities.
