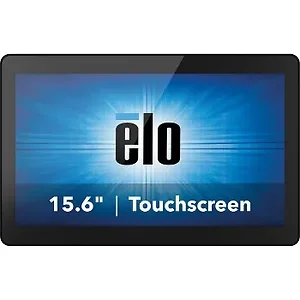

E970665 - Elo i5-6500TE 4GB 128GB Touch 15.6 Full HD W10E AiO E970665

Enclosure Color
Black Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch Processor
ESYxxi5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor 6MB Smart Cache Graphics
ESYxxi5: Intel HD Graphics 530
BIOS
AMI Memory (RAM)
ESYxxi5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots Replaceable up to 16GB maximum, SODIMM DDR4-2133 Storage
128GB 2.5" 7mm SATA SSD Diagonal Size
21.5 diagonal, Active matrix TFT LCD (LED) On-Screen Display (OSD)
Power, Brightness Up, Brightness Down, Volume Up, Volume Down Aspect Ratio
16:9
Active Area (mm)
13.6" x 7.6" / 344.2mm x 193.5mm Resolution
Full HD 1920 x 1080 at 60Hz
Number of Colors
262,000 Brightness (typical)
LCD Panel: 300 nits
PCAP: 270 nits Response Time-total (typical)
25 msec
Contrast Ratio
700:1 Viewing Angle
Horizontal: +/- 85^o or 170^o total / Vertical: +/- 85^o or 170^o total AV Capability
Front-facing HD webcam
Stereo speakers USB Ports
ESYxxi5: 4 x USB 3.0, 3 x Micro USB for Elo peripherals Ethernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Wi-Fi 802.11 a/b/g/n/ac Bluetooth
Bluetooth 4.0
Additional Video Out
2nd Micro HDMI out Audio Ports
1 x 3.5mm line out
Speakers
Two 2W internal speakers OS
No OS
Windows 7
Windows 10
Languages
Windows 7 - 35 Language groups Power
Maximum output power: 65W (Max Draw: 74W)
Maximum output power: 90W (Max Draw: 100W)
