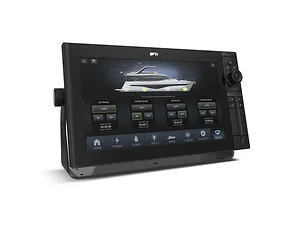

Raymarine Axiom2 Pro 16S HybridTouch chartplotter with single channel CHIRP sonar and Lighthouse North America Chart
Model: E70657-00-102Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.
Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.
Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.
Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.
Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.
Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.
Specifications| Physical | |
| Dimensions (Trunnion mounted) | Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) |
| Dimensions (Surface/Flush mounted) | Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Connections | |
| Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection | DeviceNet connector |
| Wi-Fi | Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth | v4.0 |
| Accessory connection | USB Micro B |
| Internal storage | 64GB Solid State |
| External storage | 2 front mounted MicroSDXC card slots |
| Digital Video and Audio | HDMI Out Micro connector type D |
| Analog video connections | BNC Analog video input (on power cable) |
| Analog audio connections | RCA connectors via power cable |
| External GPS anternna | TNC connector |
| Power | |
| Power consumption @ 12 V dc | 42.36 W |
| Power consumption @ 24 V dc | 40.8 W |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Off current @ 12 V dc | 11 mA (0.13 W) |
| Off current @ 24 V dc | 18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Current | 5A |
| Fuse rating | 15A |
| GPS (GNSS) | |
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
| Refresh rate | 10 Hz (10 times per second) |
| ENVIRONMENTAL | |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Waterproof rating | IPx6, IPx7 |
| Display | |
| Size (diagonal) | 15.6" |
| Resolution | 1920 x 1080 FHD |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type | IPS (In-Plane Switching) |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Illumination | 1200 nits / 1200 cd/m2 |
The Raymarine Axiom2 Pro 16S MFD (Multi-Function Display) is a navigational system designed for maritime use, integrating chartplotter, sonar, radar, autopilot, and video capabilities. This unit, part number E70657-00-102, is suitable for B2B buyers in marine industries or those managing commercial fleets requiring robust navigation and data integration. It features a 16-inch HybridTouch display, combining touchscreen and keypad controls for operational flexibility, especially in challenging sea conditions. The integrated single-channel CHIRP sonar provides reliable depth soundings, and the unit comes preloaded with Lighthouse North America Charts. Its 6-core processor and LightHouse operating system facilitate seamless integration and rapid data processing across connected systems. The HydroTough nano-coating enhances touchscreen reliability and visibility in varying light conditions, while smart backlighting automatically adjusts display brightness. The Axiom2 Pro 16S also includes features for optimizing sailing performance, such as preloaded polar profiles, dynamic laylines, and race timers, addressing the needs of both cruising and racing applications.
The Raymarine Axiom2 Pro 16S MFD comes preloaded with Lighthouse North America Charting, providing navigational data for the North American region.
No, this specific model, the Raymarine Axiom2 Pro 16S MFD, does not include a transducer. It is designed for users who may already have a compatible transducer or wish to select one separately.
The MFD offers two RayNet (10/100/1,000 Mbits/s) Ethernet ports for networking multiple Axiom displays, a DeviceNet connector for NMEA 2000, Wi-Fi (2.4GHz and 5Ghz 802.11b/g/n), and Bluetooth v4.0.
When flush mounted, the dimensions are 258 mm (10.16 in) in height, 452.02 mm (17.8 in) in width, and 240.4 mm (9.46 in) in depth, including cables.
E70657-00-102 - Raymarine Axiom2 Pro 16S MFD No Transducer Lighthouse North America Chart
