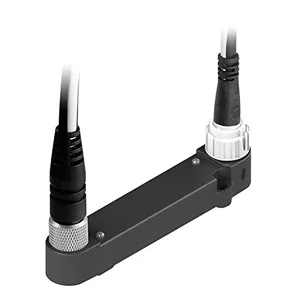

E70227 - Raymarine ECI-100 Universal Engine & Control Interface

• A simple, single point of connection for engine data and drive-by-wire autopilot control

• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways

• Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway

• View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.

• From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later

• Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more

• View engine information displays on your smart phone or tablet with Raymarine mobile apps

• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel

• Engine speed

• Engine oil temperature

• Engine temperature

• Engine oil pressure

• Engine coolant pressure

• Engine fuel rate

• Boost pressure

• Battery potential

• Transmission oil pressure

• Transmission oil temperature

• Total engine hours

• Fuel tank level

• Trip fuel used (calculated by ECI-100)

• Alternator potential

• Engine torque

• Engine percent load

• Transmission gear

• VIN (not shown on the display)

• Software number (not shown on the display)

• Volvo Penta

• Yamaha Marine (Command Link Plus only)

• Caterpillar

• Yanmar Marine

The Raymarine ECI-100 Universal Engine & Control Interface, part number E70227, is designed to bridge engine instrumentation and drive-by-wire steering systems with Raymarine autopilot and navigation displays. This unit provides a single point of connection for engine data and autopilot control, eliminating the need for multiple gateways. It is suitable for vessels of various sizes, enabling the display of engine performance data, fuel consumption, and alarms on compatible Raymarine multifunction displays running LightHouse v8 or later. The ECI-100 integrates with industry-standard NMEA2000 or SAE J1939 Engine Data Buses from manufacturers such as Volvo Penta, Yamaha Marine (Command Link Plus only), Caterpillar, and Yanmar Marine. It also facilitates a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system, leveraging its 9-axis sensor and adaptive control capabilities. This interface aims to simplify the integration of marine engine data and autopilot functions into a unified display environment.
