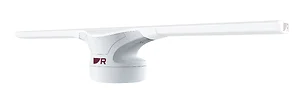

Raymarine Cyclone Pro 110 Watt Pedestal
This is the pedestal only for the 110 Watt Cyclone radar system.
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 95 Watts |
| Power consumption (max) | 195 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25C to +55C (-13F to 131F) |
| Humidity | Up to 93% at 40C (104F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 110 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
The Raymarine Cyclone Pro 110W Pedestal, part number E70621, is a core component for the 110 Watt Cyclone radar system. This unit is designed for B2B marine and IT integrators requiring a robust radar pedestal for navigation and situational awareness applications. It operates with a nominal supply voltage of 12 V dc or 24 V dc, supporting a maximum range scale of 96 nm. The pedestal features a peak power output of 110 Watts and user-selectable transmitter frequencies (9370, 9400, 9430 MHz). With an IPX6 waterproof rating and an operating temperature range of -25�C to +55�C, it is built for demanding marine environments. Its 40-second boot-up time and less than 5-second standby-to-transmit capability ensure operational readiness. This pedestal is suitable for businesses that need to replace or integrate a high-performance radar component into their existing Raymarine Cyclone 110W systems.
E70621 - Raymarine Cyclone Pro 110W Pedestal
