Condition: New

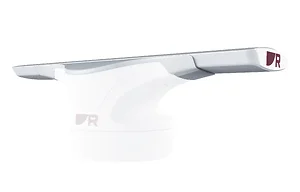

Raymarine 3 feet Cyclone Antenna Only
Model: E70628Replacement Antenna
Specifications| 25 degree | |
| Beamwidth (horizontal) | 2.83 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
The Raymarine 3ft Cyclone Antenna, part number E70628, is a replacement antenna designed for marine radar systems. This unit is engineered to withstand challenging environmental conditions, featuring a 100-knot wind rating. Its design meets the commercial-grade IEC 62388 standard for shipborne radar applications. The antenna provides a vertical beamwidth of 25 degrees and a horizontal beamwidth of 2.83 degrees, utilizing horizontal polarization. It supports multiple rotation speeds, including 12, 24, 36, 48, and 60 rpm. Measuring 1031 mm (40.59 inches) in length and weighing 7 kg (15.4 lb), this component is suitable for IT buyers managing marine vessel equipment who require a durable and compliant radar antenna replacement.
The antenna measures 1031 mm (40.59 inches) in length and has a weight of 7 kg (15.4 lb).
The box contains the E70628 3 feet Antenna only.
The antenna features a vertical beamwidth of 25 degrees and a horizontal beamwidth of 2.83 degrees.
The Raymarine 3ft Cyclone Antenna has a best-in-class 100-knot wind rating.
E70628 - Raymarine 3ft Cyclone Antenna Only
