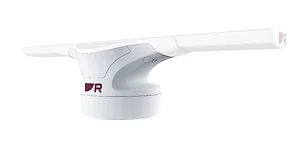

Raymarine 55 Watt Cyclone Pedestal Only
Model: E70620Pedestal Only for 55 Watt Cyclone
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
The Raymarine 55 Watt Cyclone Pedestal Only, part number E70620, is a core component designed for marine radar systems. This unit provides the necessary pedestal for a 55 Watt Cyclone radar, intended for integration into existing or custom marine navigation setups. It is suitable for IT professionals and system integrators responsible for deploying or maintaining marine electronics on commercial vessels or large private yachts. The pedestal operates on a nominal 12 V dc or 24 V dc supply, with a minimum of 10.2 V dc and a maximum of 31.2 V dc, ensuring compatibility with standard marine power systems. It offers a maximum range scale of 72 nautical miles and features a quick standby-to-transmit time of less than 5 seconds. With an IPX6 waterproof rating and an operating temperature range of -25�C to +55�C, this pedestal is built for demanding marine environments, addressing the need for durable and reliable radar infrastructure.
