E70493 - Raymarine Ray91 VHF Radio System w/ AIS - Dual-Station

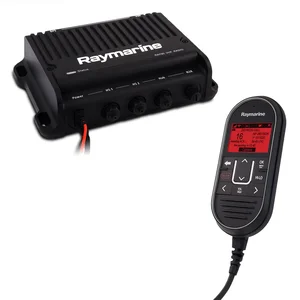

Raymarine Ray91 VHF Radio System with AIS

The Raymarine Ray91 is a cutting-edge modular VHF radio system designed for dual-station communications and advanced traffic management. With its sleek black-box design, the transceiver remains discreetly hidden, while the ergonomic RayMic handset and remote speaker deliver exceptional control and audio clarity.

Key Features:

• Dual-station capable VHF radio in a black box design
• Integrated Class B Automatic Identification System (AIS) Receiver
• Includes wired handset and passive speaker
• Expandable for up to 2 RayMic handsets
• Built-in loudhailer and fog signal generator
• Supports external GPS and Class D Digital Selective Calling
• Easy networking with NMEA2000 and NMEA0183

Utilize the Ray91 to receive essential navigation and safety broadcasts from nearby AIS-equipped vessels and share this data over NMEA2000 or NMEA0183 with compatible marine display systems. The Ray91 easily identifies AIS-equipped vessels, providing vital information such as their name, course, speed, and other voyage details.

Powerful Communication Features

With a robust 25-watt transmitter and high-quality electronics, the Ray91 ensures long-term durability and excellent performance. Standard features include channel scanning, dual-watch, tri-watch, and weather alerts. Setting up Class D Digital Selective Calling and GPS functionalities is straightforward; simply input your vessel's MMSI number during setup. Note that for GPS functions, an optional GA150 passive GPS antenna is required.

Position Tracking Capabilities

The position tracking feature allows users to monitor up to 5 nearby DSC-equipped vessels, automatically sharing their locations with your Raymarine MFD. This feature is excellent for keeping track of your cruising companions or managing a local fleet. In Europe, the Ray91 is compatible with the ATIS system for navigation on inland waterways.

Enhanced Loudhailer Functionality

The integrated loudhailer ensures you are heard both on-deck and throughout the harbor. By connecting an optional hailing horn, you can project 30-watt audio output alongside 2-way talkback capabilities. During foggy conditions, the loudhailer can automatically emit essential fog signals for both powered and sailing vessels.

Rugged and Waterproof

Built to withstand harsh marine environments, the transceiver unit is encased in solid aluminum, providing resistance to shock, vibration, and effective heat dissipation. The RayMic handsets boast bright backlighting for optimal visibility in all conditions, with oversized keys that ensure easy operation even in challenging situations.

The Ray91 system comes complete with one wired handset and a passive speaker kit. Expandable to include an additional wired station, the Ray91 ensures communication is maintained from various locations on your vessel, whether at the helm, on the flybridge, or in the stateroom.

For vessels of any size, the Raymarine Ray91 offers the power and performance necessary for reliable communications, safety, and situational awareness on the water.

The Raymarine Ray91 VHF Radio System with AIS is a modular communication solution designed for dual-station maritime use. This system is suitable for commercial vessels or larger recreational boats requiring robust communication and advanced traffic management capabilities. The core transceiver unit, featuring a black-box design, can be discreetly installed, while control is managed via an ergonomic RayMic handset and remote speaker. Key functionalities include an integrated Class B Automatic Identification System (AIS) receiver, which provides essential navigation and safety broadcasts by identifying nearby AIS-equipped vessels and sharing data via NMEA2000 or NMEA0183. The system offers a 25-watt transmitter, channel scanning, dual-watch, tri-watch, and weather alerts. It also includes a built-in loudhailer with fog signal generator and supports Class D Digital Selective Calling (DSC) and position tracking for up to five DSC-equipped vessels. The E70493 system is expandable for an additional RayMic handset, ensuring communication from multiple vessel locations. Its rugged aluminum chassis provides durability in marine environments.
