PCAP ANTI-G ZERO-BEZ NO STAND BLACK

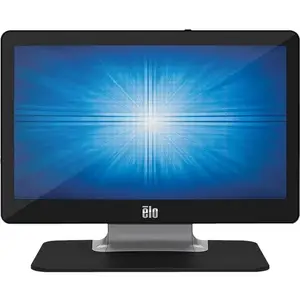

The ELO 1302L 13.3-inch Wide Monitor (part number E683595) is a full HD, anti-glare, zero-bezel PCAP touchscreen display designed for business and IT environments. This monitor is suitable for applications requiring a compact, interactive display without an integrated stand. It features 10-point projected capacitive touch technology, providing responsive input for various commercial uses.
Key connectivity options include HDMI, VGA, and a full-function USB-C port that supports power delivery, USB 3.0, and DisplayPort. Additionally, four Micro-USB ports are available for Elo Edge Connect peripherals, enhancing its adaptability for specific setups. The monitor's 1920 x 1080 resolution and 170-degree viewing angle ensure clear content visibility across a range of operational scenarios. This unit addresses the need for a durable, interactive display in settings such as point-of-sale, information kiosks, or embedded systems where space is a consideration and touch functionality is critical.
Part Number(s)
Black Without Stand (Worldwide) - E683595 Enclosure Color
Black Touch Technology and Capacity
PCAP (Projected Capacitive) - 10 Touch Diagonal Size
13.3" diagonal, Active matrix TFT LCD Aspect Ratio
16:9 Active Area (mm)
11.57" x 6.51" / 293.76 mm x 165.24 mm Resolution
1920 x 1080 Other Supported Resolutions
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 60Hz Viewing Angle
Horizontal: +/-85o or 170o total / Vertical: +/-85o or 170o total Number of Colors
16.7 million Brightness (typical)
Panel: 300 nits TouchPro PCAP: 270 nits Response Time-total (typical)
25 msec Contrast Ratio
800:1 Touch Interfaces
USB Surface Treatment
Anti-glare On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, Power I/O Ports
1 x Full-function USB-C (Requires PD Power Delivery, USB 3.0 and Display Port)
1 x Audio jack (Line-in)
1 x VGA
1 x HDMI
1 x 12V D/C input
4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals Speakers
2 x 1W Video
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA
USB Type-C Input Video Frequency
Horizontal: 30 75K KHz
Vertical: 60Hz
The monitor utilizes PCAP (Projected Capacitive) touch technology, supporting 10 simultaneous touch points for interactive applications.
It includes HDMI V1.3, Analog VGA, and a USB Type-C port for video input. The USB Type-C port requires PD Power Delivery, USB 3.0, and DisplayPort support from the connected device.
No, the ELO 1302L is specified as "Without Stand." It is designed for integration into custom enclosures or mounting solutions.
The native resolution of this 13.3-inch monitor is 1920 x 1080, providing Full HD clarity. It also supports various other resolutions at 60Hz.
