Product Overview
General InformationThe Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket. The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box. Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images. The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.Technical InformationScreen Size Class: 17"Viewable Screen Size: 17"Screen Mode: SXGAResponse Time: 30 msAspect Ratio: 5: 4Mount Type: Wall MountableBacklight Technology: LEDVideoMaximum Resolution: 1280 x 1024Color Supported: 16.7 Million ColorsContrast Ratio: 800: 1Brightness: 250 NitAudioSpeakers: YesTouchscreen InformationTouchscreen Type: IntelliTouch Pro Projected CapacitiveMulti-touch Screen: YesInterfaces/PortsDVI: YesUSB: YesVGA: YesBuilt-in DevicesBuilt-in Devices: SpeakerPower DescriptionOperating Power Consumption: 22 WPhysical CharacteristicsVESA Mount Compatible: YesColor: BlackHeight with Stand: 8.24"Width with Stand: 15.42"Depth with Stand: 14.20"Weight (Approximate): 7.86 lbWeight with Stand (Approximate): 25.35 lbMiscellaneousPackage Contents: 1723L Multifunction 17-inch Desktop Touchmonitor Touch/Video/Accessory Cables Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: China RoHSEnvironmental Certification: WEEEWarrantyLimited Warranty: 3 Year
Expert Overview

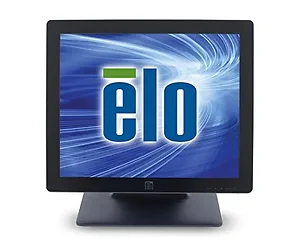

The ELO ET1723L-2UWA-1-BL-MT-ZB-G is a 17-inch touchmonitor designed for business environments requiring durable, interactive display solutions. This model, part number E683457, features IntelliTouch Pro projected capacitive touchscreen technology, supporting 10-touch interaction. It offers a 1280 x 1024 resolution and a 5:4 aspect ratio, suitable for various applications. The display is engineered with a spill-resistant sealing and offers both an adjustable height stand with tilt functionality and VESA mounting options for installation flexibility. Connectivity includes DVI, USB, and VGA ports. This touchmonitor is intended for retail and hospitality sectors where consistent performance and a modern aesthetic are priorities, addressing the need for reliable interactive displays in high-traffic areas.
Technical Specifications
Model
1723L Display
17.0 Diagonal Aspect Ratio
5:4 Active Display Area
Horizontal: 13.0 inch (337mm)
Vertical: 11.0 inch (270mm) Native (Optimal) Resolution
1280x1024 at 75Hz Other Supported Resolutions
1280 x 1024 at 60, 75 Hz
1024 x 768 at 60, 75 Hz
800 x 600 at 60, 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz Colors
16.7 Million Brightness (Typical)
LCD Panel: 250 nits
IntelliTouch Zero Bezel: 225 nits
IntelliTouch Pro: 215 nits Response Time Total (Typical)
30 msec Viewing Angle (Typical)
Horizontal: 170 Degree Total
Vertical: 160 Degree Total Contrast Ratio (Typical)
800:1 On Screen Display (OSD)
Controls (Side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Power
Input/Output: Analog, VGA, DVI-D
Input Video Signal Connector: Mini D-Sub 15-Pin VGA Type, DVI-D Connector
Input Frequency:
- Horizontal: 31 to 80 kHz
- Vertical: 56 to 75 Hz
Power Supply: AC-DC Power Adapter
Input Voltage:
- AC: 100 to 240V AC 50/60 Hz
-DC: 12.0V +/-5%
Input Connector: (DC) Coaxial Power Jack (2.1mm Outer pin Diameter, 6.4mm Barrel Diameter, 8.8mm Barrel Length)
Power Consumption (Typical):
- On (Monitor + AC/DC Adapter): 22W
- Sleep: (Monitor + AC/DC Adapter): 2.0W
- Off (Monitor + AC/DC Adapter): 1.0W Input/Output (I/O)
Speakers: Two 2W Internal Speakers
Additional Ports: Two External USB Ports Environmental
Temperature
- Operating: 0 C to 40 C (32 F to 104 F)
- Storage: -20 C to 60 C (-4 F to 140 F)
Humidity (Non-Condensing):
- Operating: 20 to 80%
Storage: 10 to 90% Other
Form Factor: Desktop
Enclosure Color: Black, White
MTBF: 50,000 Hours Demonstrated
Stand Options: Tilt, Remove
Mounting Options: 75mm VESA Mount
Sealing: Touchscreen Sealed to Bezel / Touchscreen Sealed to LCD
Other Features:
- 2 Stage DPMS
- VESA DDC Plug and Play
- Security Lock Receptacle
- Internal Speakers Item Dimension (L"xW"xH")
20 x 18 x 9
Weight
20.00 lb
Warranty Information
3 Years
Frequently Asked Questions
What touchscreen technology does this monitor use?
This monitor utilizes IntelliTouch Pro Projected Capacitive touchscreen technology, which supports 10-touch interaction and features an anti-glare surface coating.
What are the available video input options?
The monitor includes DVI, USB, and VGA ports for video input, providing compatibility with various system configurations.
Is this monitor suitable for wall mounting?
Yes, the monitor is VESA mount compatible, allowing for wall mounting in addition to its adjustable height stand with tilting functionality.
What is the typical power consumption of this monitor?
The typical operating power consumption for the monitor, including the AC/DC adapter, is 22W.
