E330225 - Elo 1790L 17IN LCD OPEN FRAME HDMI

11 Available
Condition: New

$521.17  $703.58
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

VGA DISP PORT VID CAP 10TCH NCNR

Expert Overview

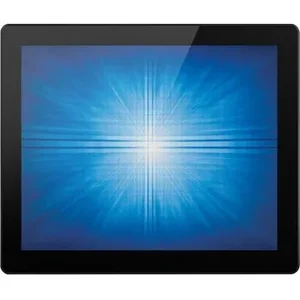

The Elo 1790L 17-inch open-frame LCD touch display is designed for integration into various commercial and industrial enclosures. This unit features a slim profile and narrow dimensions, utilizing energy-saving LED backlighting to reduce power consumption and heat generation. It provides a 1280 x 1024 SXGA resolution with a 5 ms response time and 800:1 contrast ratio, supporting 16.7 million colors. The projected capacitive (PCAP) touchscreen offers multi-touch capabilities and is sealed against dirt, dust, and liquids, allowing for an IP65 front-side rating when properly integrated. Connectivity options include HDMI, VGA, DisplayPort, and USB. This display is suitable for applications such as kiosks, retail self-service, casino and amusement systems, and industrial automation. The part number for this model is E330225, and it is designed for stable operation and accurate touch responses in demanding environments.

Technical Specifications

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expecteGeneral InformationManufacturer: Elo Touch Solutions, IncManufacturer Part Number: E330225Brand Name: EloProduct Model: 1790LProduct Name: 1790L 17" Open Frame Touchscreen (Rev B)Product Type: Open-frame LCD Touchscreen MonitorTechnical InformationScreen Size: 17"Screen Mode: SXGAResponse Time: 5 msAspect Ratio: 5:4Mount Type: Flush Mount, Rear MountBacklight Technology: LEDVideoMaximum Resolution: 1280 x 1024Color Supported: 16.7 Million ColorsContrast Ratio: 800:1Brightness: 250 NitTouchscreen InformationTouchscreen Type: Projected CapacitiveMulti-touch Screen: YesInterfaces/PortsHDMI: YesUSB: YesVGA: YesDisplayPort: YesPower DescriptionOperating Power Consumption: 17.80 WPhysical CharacteristicsVESA Mount Compatible: YesColor: BlackHeight: 12.9"Width: 15.4"Depth: 1.7"Weight (Approximate): 7.94 lbMiscellaneousPackage Contents: 1790L 17" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws Japan Class-B info sheet Environmentally Friendly: YesEnvironmental Certification: T??V, RoHS, China RoHS, WEEEWarrantyLimited Warranty: 3 Year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • ELO
  • E330225
  • 815335025969
  • New
  • 7.94 lbs
  • 2 X 13 X 15
  • Sep 06, 2026
  • Sep 06, 2026
  • CN
Product Identifiers: Brand: Elo • Part #: E330225 • UPC: 815335025969 • Category: Monitors

Compare Similar Elo Monitors

Browse more: Elo Monitors • All Elo products

Frequently Asked Questions

What type of touchscreen technology does the Elo 1790L use?

The Elo 1790L utilizes projected capacitive (PCAP) touchscreen technology, which supports multi-touch functionality. This technology is known for its durability and responsiveness.

What video input options are available on this open-frame monitor?

The Elo 1790L offers multiple video input options, including HDMI, VGA, and DisplayPort, providing flexibility for integration with various systems.

What is included in the package with the 1790L display?

The package includes the 1790L 17" Open Frame Touchscreen (Rev B), HDMI cable, VGA Cable, RJ45 OSD Remote, Touch USB Cable, User Manual CD, Quick Install Guide, Flush Mount Brackets with Screws, and a Japan Class-B info sheet.

Can this display be mounted using VESA standards?

Yes, the Elo 1790L is VESA mount compatible. It also supports flush mount and rear mount configurations for integration into custom enclosures.
