Product Overview
General InformationThe Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.Touch ready.The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch five-wire resistive, IntelliTouch SAW or SecureTouch anti-vandal SAW.Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.Other features. Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities Technical InformationScreen Size Class: 15"Viewable Screen Size: 15"Screen Mode: XGAResponse Time: 16 msAspect Ratio: 4: 3Mount Type: Rack-mountableMount Type: Front MountBacklight Technology: LEDVideoMaximum Resolution: 1024 x 768Color Supported: 16.2 Million ColorsContrast Ratio: 700: 1Brightness: 250 NitTouchscreen InformationTouchscreen Type: 5-wire ResistiveInterfaces/PortsHDMI: YesUSB: YesVGA: YesDisplayPort: YesPower DescriptionOperating Power Consumption: 12.50 WPhysical CharacteristicsVESA Mount Compatible: YesColor: BlackHeight: 10.4"Width: 13.2"Depth: 1.7"Weight (Approximate): 6.40 lb
Expert Overview

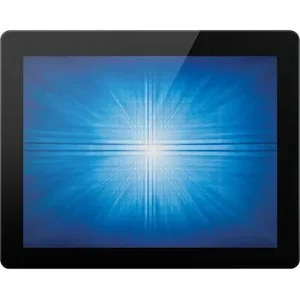

The ELO ET1590L-7CWB-1-ST-NPB-G (part number E326154) is a 15-inch open-frame LCD touch display designed for integration into various commercial and industrial environments. This unit features a slim design with LED backlighting, contributing to reduced power consumption and heat generation. It utilizes 5-wire resistive single-touch technology, offering stable and drift-free operation suitable for applications requiring consistent touch response. The touchscreen is sealed against dirt, dust, and liquids, simplifying its integration into custom enclosures and supporting an IP65 rating on the front side when properly sealed. With a 4:3 aspect ratio and 1024 x 768 resolution, it provides clear image clarity. Connectivity options include HDMI, VGA, and DisplayPort video interfaces, along with USB for touch input. This display is intended for kiosks, retail self-service, casino and amusement, and industrial automation, where a robust and reliable touch interface is required.
Technical Specifications
Enclosure Color
Black Touch Technology and Capacity
5-Wire Resistive (AccuTouch) - Single-Touch Touch Interface
Dual serial/USB 2.0 Diagonal Size
15" diagonal, Active matrix TFT LCD (LED) On Screen Display
Accessible through switches on the units tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
4:3 Active Area (mm)
11.97" x 8.98"/ 304.1mm x 228.1mm Resolution
1024 x 768 Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
Viewing Angle
Horizontal: +/-80o or 160o total / Vertical: +/-70o /80o or 150o total Number of Colors
16.2 million Brightness (typical)
240 nits Response Time-total (typical)
23 msec Contrast Ratio
800:1 Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 - 60 KHz
Vertical: 50 - 75 Hz
Video Interface
HDMI, VGA and Display Port Power Supply
External DC - Optional power brick (sold separately) Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) Input Voltage
12VDC +/- 5%
Frequently Asked Questions
What touch technology does this monitor use?
This monitor utilizes 5-wire Resistive (AccuTouch) single-touch technology. It provides stable and drift-free operation for consistent touch responses.
What video input interfaces are available on this display?
The ELO ET1590L-7CWB-1-ST-NPB-G includes HDMI V1.3 Type A, Analog VGA on a Female DB-15 connector, and DisplayPort V1.1a for video input.
Is the power supply included with the monitor?
No, the power supply is external DC and an optional power brick is sold separately. The monitor requires a 12VDC +/- 5% input voltage.
What are the mounting options for this open-frame display?
The display supports both rack-mountable and front mount configurations. It is also VESA Mount Compatible for flexible integration.
