Condition: New

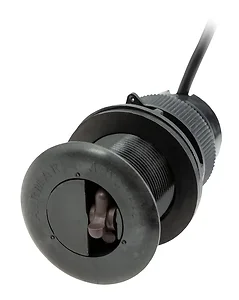

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.
Model: DST-810PSF| Acoustic Window | Urethane |
| Hull Deadrise | Up to 22° |
| Data Update Rate | Depth 1X/second |
| Data Update Rate | Speed 5X/second |
| Attitude Accuracy | +/— 1° nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6') |
| Maximum Depth Range | Up to 100 m (330')—NMEA 2000® |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10') |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC—per NMEA 2000 |
| Supply Current | <200 mA—per NMEA 2000® |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20') DeviceNet—NMEA 2000® |
| Temperature Sensor Accuracy | +/-0.5°C (+/-1.8°F) |
| Temperature Sensor Range | -10°C to 40°C (14°F to 104°F) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
The Furuno DST-810PSF is a NMEA 2000 Airmar Smart Transducer designed for marine vessels requiring integrated depth, speed, and temperature data. This plastic thru-hull unit operates at 235 kHz and is suitable for both sailing and power boats. It provides a 5 Hz speed output for smoother speed-through-water reporting and faster data acquisition, aiding in navigation and operational decisions. An integrated attitude sensor measures heel and trim, which can be beneficial for vessel performance monitoring. The transducer supports advanced speed calibration, allowing for manual speed entries across multiple heel angles and up to 10 speeds. It stores configurations and transmits data directly to an NMEA 2000 network. With a minimum depth range of 0.5 meters and a maximum of 100 meters, it functions effectively in shallow to moderate depths. This transducer is intended for IT and marine professionals seeking a reliable, multi-sensor solution for NMEA 2000 networks.
The DST-810PSF is a multisensor transducer that provides depth, heel-corrected speed-through-water, heel and trim, and water temperature data from a single installed unit.
The maximum depth range for the DST-810PSF transducer is up to 100 meters (approximately 330 feet).
This transducer is designed to store configurations and deliver data to an NMEA 2000 network.
The speed data update rate for the DST-810PSF is 5 times per second (5X/second), which provides visibly smoother speed-through-water reporting.
