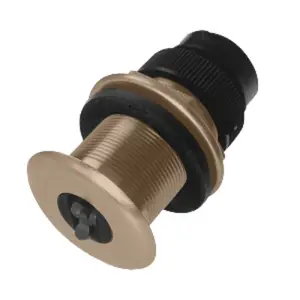

DST-810MSF - Furuno Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

Airmar B617V Housing Style Transducer

The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2”) fitting. Only one hole through the hull simplifies the installation — an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-810MSF's reliable temperature sensor.

The DST-810MSF features a new Wireless connectivity to Airmar's CAST App, allowing you to calibrate the sensor, add depth offsets, and more.

Features:

• Depth, speed, and temperature in one compact bronze housing
• Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
• Weight: 1.6 kg (3.5 lb)
• Acoustic Window: Urethane Hull
• Deadrise: Up to 22°
• Data Update Rate: 1 per second
• Minimum Sounding Depth: 0.5 m (1.6’)
• Maximum Sounding Depth: 70 m (230’)
• Pressure Rating: 3 m (10’)
• Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
• Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
• Supply Current: 40 mA
• Standard Cable Length: 6m
• NMEA 2000® Load Equivalency Number (LEN): 4

The Furuno DST-810MSF is a bronze thru-hull digital sensor designed for marine applications, providing depth, speed, and temperature data. This unit integrates three functions into a single 51 mm (2") fitting, simplifying hull penetration requirements for both new installations and upgrades. It is suitable for vessels with hull deadrise angles up to 22 degrees and is compatible with NMEA 2000 networks, indicated by its LEN of 4. The sensor offers a minimum sounding depth of 0.5 m and a maximum of 70 m, with a data update rate of one per second. Its speed-through-water enhancements provide accurate readings, particularly below 5 knots, and a wide, fan-shaped beam assists in bottom tracking on various hull types. Wireless connectivity to Airmar's CAST App allows for calibration and depth offset adjustments.
