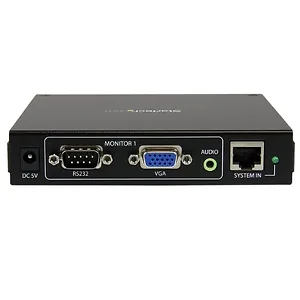

Startech DSRXL VGA Over Cat5 Receiver with RS232 and Audio

Out of Stock
Condition: New

$237.38  $320.46
 Free Shipping for this Item

Product Overview

The StarTech VGA Over Cat5 Receiver is designed to extend VGA video and audio signals over long distances using CAT5 cabling. This robust solution provides high-resolution display options and supports features such as RS-232 serial communication for device control, making it ideal for various applications, including multimedia presentations and digital signage.

Technical Specifications

  • Maximum Resolution: 1600x1200 at 100m / 330ft, 1280x1024 at 300m / 950ft
  • Color: Black
  • Connector Types: 2 - DB15 High Density Female, 2 - Phono 3.5 mm Female, 2 - RJ45 Female, 2 - DB9 Male
  • Enclosure Type: Steel
  • Maximum Cable Length: 32.8 ft (10 m)
  • Number of Ports: 1
  • Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Output Current: 2A
  • Output Voltage: 5 DC
  • Power Adapter Included: Yes
  • Power Adapter - Amperage: 600mA
  • Power Adapter - DC Voltage: 12V DC
  • Center Tip Polarity: Positive
  • Storage Temperature: -20 deg C to 60 deg C (-4 deg F to 140 deg F)
  • Humidity: 0-90% RH, non-condensing
  • RS-232 Serial Support: Yes
  • Audio Support: Yes, Stereo CD Quality sound
  • DDC/EDID Emulation: Yes, emulation for port 1 monitor
  • Rack-Mountable: Yes
  • Daisy-Chain: Up to 5 levels

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • STARTECH
  • DSRXL
  • B003GSGO0S
  • 065030837484
  • New
  • 1.16 lbs
  • 5 X 1 X 5
  • Mar 07, 2026
  • May 26, 2010
Product Identifiers: Brand: Startech • Part #: DSRXL • UPC: 065030837484 • ASIN: B003GSGO0S • Category: AV Cables & Adapters
