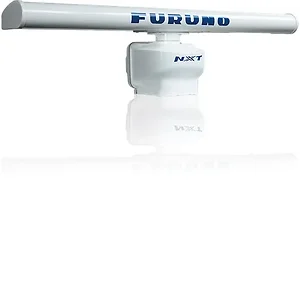

DRS25ANXT/6 - Furuno DRS25ANXT 200 Watt Solid State Radar With 6ft Antenna

Furuno DRS25ANXT 200 Watt Solid-State Doppler Radar with 6' antenna

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

• RSB137-126 Pedestal
• 001-512-620-00 15m Cable
• XN13A/6 6' Antenna

The Furuno DRS25ANXT 200 Watt Solid State Radar with 6ft Antenna, part number DRS25ANXT/6, is a solid-state Doppler radar system designed for maritime navigation and situational awareness. This unit is suitable for commercial vessels, workboats, or larger recreational craft requiring advanced radar capabilities. It integrates pulse compression and Doppler technology to provide target detection and tracking. Key features include Target Analyzer�, which color-codes approaching targets in red for immediate identification, and Fast Target Tracking� for rapid display of target vectors. The system also incorporates Furuno's RezBoost� technology, which aims to enhance beam sharpening for improved target separation, comparable to larger antenna arrays. Operating on 12-24 VDC with a 200 W power output, this X-band open array radar with a 6-foot antenna provides a 1.3-degree beam width, assisting operators in navigating complex waters and avoiding collisions by clearly distinguishing targets.
