DRS12ANXT/6 - Furuno DRS12ANXT Solid State Radar

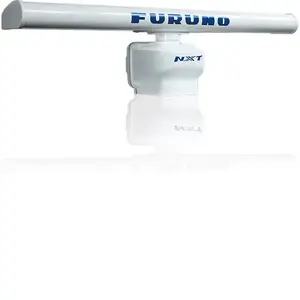

Furuno DRS12ANXT Solid State Radar with 6' Antenna

The Furuno DRS12ANXT Radar represents a significant advancement in radar technology. This solid-state radar utilizes pulse compression, Target Analyzer� and Fast Target Tracking� capabilities, all powered by Doppler technology. Enhanced by Furuno's exclusive RezBoost� feature, this compact radar unit achieves performance levels typically seen in larger systems.

The innovative Target Analyzer� function allows for an intuitive color-coded representation of nearby vessels: approaching targets are displayed in red, while stationary or retreating targets are shown in green. This dynamic color change occurs regardless of your own vessel's speed, enhancing safety and situational awareness by providing real-time visual cues.

Once a target is selected, the system displays a speed and course vector, allowing for quick assessment of potential collision risks. The Doppler technology further assists in tracking, providing alarms for any vessels closing in on your position.

With RezBoost� technology, users benefit from remarkable image clarity, obtaining the sharpness typical of much larger antennas, all within a compact form factor.

• Antenna Size: 6'
• Band: X
• Power Usage: 12-24 VDC
• Range: 96 nm
• Antenna Type: Open Array
• Beam Width: 1.35 degrees
• Power Output: 100 W

The Furuno DRS12ANXT Solid State Radar with a 6' Antenna is designed for business and IT buyers requiring advanced marine navigation and situational awareness. This solid-state radar system utilizes pulse compression and Doppler technology to provide enhanced target detection and tracking. Key features include Target Analyzer�, which color-codes approaching targets in red and stationary/retreating targets in green, improving real-time visual cues for collision avoidance. Fast Target Tracking� provides speed and course vectors for selected targets, and Doppler technology issues alarms for closing vessels. The DRS12ANXT/6 model incorporates RezBoost� technology, delivering image clarity comparable to larger antenna systems within a compact footprint. With a 96 nautical mile range and a 1.35-degree beam width from its open array antenna, this unit is suitable for applications requiring reliable, high-resolution radar data and improved safety in various maritime environments. It operates on 12-24 VDC.
