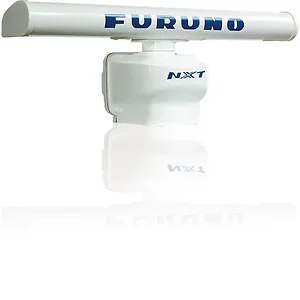

DRS12ANXT/4 - Furuno 12-inch 100 Watt Solid State Radar with 15m Cable and 4ft Antenna

Furuno DRS12ANXT 100 Watt Solid-State Doppler Radar with 4' antenna

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

• RSB137-125 Pedestal
• 001-512-620-00 15m Cable
• XN12A/4 4' Antenna

The Furuno DRS12ANXT/4 is a 100 Watt solid-state Doppler radar system designed for marine applications. It includes a 4-foot open array antenna and a 15-meter cable, suitable for vessels requiring robust target detection and tracking capabilities. This system utilizes pulse compression and Doppler technology to enhance target analysis, distinguishing between stationary, receding, and approaching targets by color-coding them green or red, respectively. This feature, known as Target Analyzer, aims to improve situational awareness and safety by providing immediate visual cues on target movement relative to your vessel. Additionally, the system incorporates Fast Target Tracking, which displays speed and course vectors for selected targets within seconds. The DRS12ANXT/4 operates on 12-24 VDC and offers a maximum range of 96 nautical miles, making it a practical solution for business and IT buyers in the maritime sector seeking reliable radar performance.
