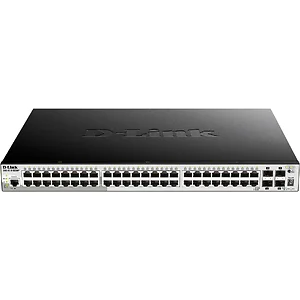

DGS-1510-52XMP - D-link Networking DGS-1510-52XMP 52 Port DGS-1510 Gigabit PoE Switch 10GbE SFP+ 370W Brown Box

General
Hardware version : DGS-1510-52XMP: A1
Port Standards and Functions : IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation
Number of Ports : DGS-1510-52XMP: 48 10/100/1000 Mbps PoE capable, 4 10G SFP+
Network Cables : UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex : Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange : Auto or configurable MDI/MDIX
Performance
Switching Capacity : DGS-1510-52XMP: 176 Gbps
Transmission Method : Store-and-forward
MAC Address Table : 16,000 entries per device
MAC Address Update : Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate: DGS-1510-52XMP: 130.95 Mpps
Packet Buffer Memory : DGS-1510-52XMP: 3 MB per device
PoE (DGS-1510-28P, DGS-1510-28XMP and DGS-1510-52XMP only)
PoE Standard: DGS-1510-52XMP: IEEE 802.3af, 802.3at
PoE Capable Ports Ports: DGS-1510-52XMP: 1 to 48: up to 30 W
PoE Power Budget: DGS-1510-52XMP: Max 370 W (without DPS-700) Max. 740W (with DPS-700)
Physical and Environmental
AC Input : 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption : DGS-1510-52XMP: 486.9 W (PoE on), 58.8 W (PoE off)
Standby Power Consumption: DGS-1510-52XMP: 40.1 W
Smart Fan Quantity: DGS-1510-52XMP: 4
Acoustics: DGS-1510-52XMP: 55.4 dB(A)
Heat Dissipation: DGS-1510-52XMP: 1660.33 BTU/hr
Operation Temperature : 23 to 122 ^oF (-5 to 50 ^oC)
Storage Temperature : -4 to 158 ^oF (-20 to 70 ^oC)
Operation Humidity : 0% to 95% non-condensing
Storage Humidity : 0% to 95% non-condensing
Dimensions : DGS-1510-52XMP: 17.36 x 9.84 x 1.73 inches (440 x 250 x 44 mm)
19 standard rack mounting width 1U
Weight DGS-1510-52XMP: 11.93 lbs (5.41 kg)
Diagnostic LEDs : Power/Stacking ID/Fan (per device),
Link/Activity/Speed (per 10/100/1000 Mbps port),
Link/Activity/Speed (per Gigabit SFP port),
Link/Activity/Speed (per 10G SFP+ port)
Certifications : CE, FCC, C-Tick, VCCI, BSMI, CCC
IPv6 Ready Logo Phase 2 (DGS-1510-20/-28/-28X/-28P/-28XMP only)
Safety: cUL, CB
MTBF: DGS-1510-20: 882,152 hr.
DGS-1510-28: 516,593 hr.
DGS-1510-28P: 275,428 hr.
DGS-1510-28X: 516,593 hr.
DGS-1510-28XMP: 274,796 hr.
DGS-1510-52: 433,434 hr.
DGS-1510-52X: 416,789 hr.
Item Dimension (L inchxW inchxH inch)
21 x 19 x 5 Weight
15.75lb Warranty Information
Lifetime
