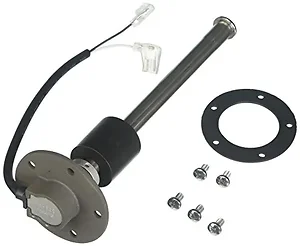

CW61644 - Vdo Reed Switch Fuel Sender - 200MM

Reed Switch Fuel Sender - 200 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 8" (200mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender (part number CW61644) is designed for accurate fuel level measurement in tanks with an 8-inch (200mm) depth. This component is suitable for IT and operations managers overseeing fleet maintenance, industrial equipment, or marine applications requiring reliable fuel monitoring. Unlike traditional swing-arm senders, its tubular, floatless design addresses common issues such as erratic gauge readings caused by fuel slosh and clearance constraints within tanks. The absence of moving parts in its sensing mechanism contributes to durability and reduces wear. Constructed from stainless steel with an ethanol-resistant Viton gasket, it offers compatibility with various fuel types. Installation is facilitated by a standard SAE 5-hole mounting flange, and it includes a neoprene gasket and mounting hardware. This sender provides a 240-33 Ohm range and utilizes insulated 1/4" spade connectors for electrical hookup, ensuring consistent performance in demanding environments.
