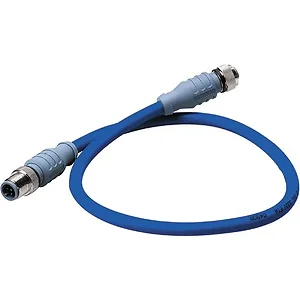

8 Meter Blue Double-Ended Cordset
Mechanical:
- Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
- Contact Material/Plating: Brass/Gold
- Coupling Nut Material/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical:
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable:
- Outer Jacket Material/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
Environmental:
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
Approvals:
- (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
