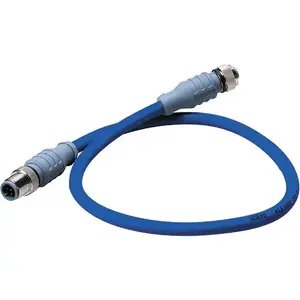

CW47016 - Maretron Double-Ended Cordset - 6M - Blue

Maretron Double-Ended Cordset - 6M

The Maretron double-ended cordset ensures reliable connectivity for your marine electronics. This 6-meter blue cordset is crafted with high-quality materials and meets rigorous standards for performance and durability.

Mechanical:

• Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
• Contact Material/Plating: Brass/Gold
• Coupling Nut Material/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"

Electrical:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable:

• Outer Jacket Material/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

Environmental:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40�C to 80�C (-40�F to 176�F)

Approvals:

• (Cable) UL: PLTC 75�C Sunlight Resistant E90625, AWM 80�C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75�C, AWM I/II A/B 80�C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3
