SKU: KEURIEUKIP |  Mfg. Part: CW46993  | UPC: 873804001814  |
 1 Reviews  |     Share

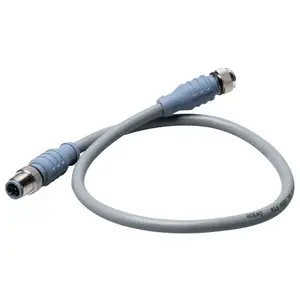

Maretron CW46993 5 Meter Double-Ended Cordset - Gray

Special Order
Ships in 1-2 weeks
Condition: New

$64.35  $86.87
 Free Shipping for this Item

Product Overview

The Maretron 5 Meter Double-Ended Cordset is designed for robust marine use, ensuring reliable connectivity under various environmental conditions. With top-notch materials and a temperature rating suitable for extreme conditions, this cordset is a trusted choice for any boating enthusiast.

Technical Specifications

  • Mechanical:
  • Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
  • Contact Material/Plating: Brass/Gold
  • Coupling Nut Material/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
  • Electrical:
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
  • Cable:
  • Outer Jacket Material/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG for Data, 2x20 (0.81mm) AWG for Power, 20 (0.81mm) AWG Drain Wire
  • Shielding: Overall Alum/Polyester Foil, Foil for Power Pair, Foil for Data Pair
  • Environmental:
  • Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
  • Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • Approvals:
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Maretron
  • CW46993
  • B00BQ4GLWA
  • 873804001814
  • New
  • 2.65 lbs
  • 11 X 2 X 8
  • Apr 04, 2026
  • Apr 30, 2021
  • Mexico
Product Identifiers: Brand: Maretron • Part #: CW46993 • UPC: 873804001814 • ASIN: B00BQ4GLWA • Category: Consumer Electronics

Maretron CW46993 5 Meter Double-Ended Cordset - Gray
