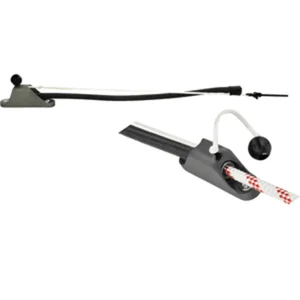

| Constrictor® Textile Rope Clutch - Single 12mm Rope | |
|---|---|
| Stronger | The standard Constrictor® range provides 2x the holding power of conventional rope clutches, and custom solutions are available with holding power up to the break load of the rope! |
| Lighter | At least 3x lighter than conventional rope clutches. |
| Safely Release Under Load | |
| Remote Release System | The Constrictor® control lanyard can be extended to provide remote release, making it ideal for applications such as mast-head mounted halyard to eliminate mast compression loads and halyard creep. |
| Materials | |
| Housing/Base | Anodised Aluminium |
| Bi-conical Insert | Titanium |
| Sock | Aramid |
| Control Lanyard | Dyneema® |
| Specifications | |
| Rope Ø | 1/2 |
| Height | 5 |
| Width | 1-3/8 |
| Length | 5 |
| Fastener Ø | 1/2 |
| Fastener Hole Centers | 2-3/4 - 3-1/2 |
| Breaking Load | 7,870lb |
| Weight | 11.6oz |
Unlike all conventional clutches the Constrictor® system does not crush the rope between two metal surfaces. Instead, the loaded rope is held securely in a textile sock, itself attached to an anchor base. The rope runs freely through the sock in one direction, but is gripped instantly within the sock when running out in the opposite direction. This constrictor effect, provides increasing holding power as the load increases.
