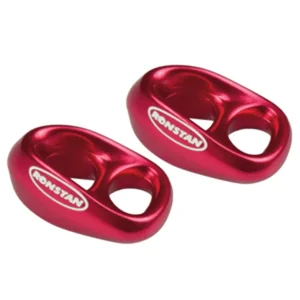

RF8080R-2 - Ronstan Shock - 3/16" Line - 1/4" Webbing - Red - Pair

Shock - 3/16" Line - 1/4" Webbing - Red - Pair

The Sheaveless Black

The obvious choice for those kitesurfers, paragliders, control line deflections and purchase systems that require a lightweight high load capacity block.

Ultimate durability

With no moving parts SHOCKS provide ultimate durability and are maintenance free. They are ideal where sand and grit would compromise a bearing system or where regular flushing out isn?t possible. Their gentle 3-dimensional geometry is kind on lines, but is strong enough to cope with poor leads.

Soft attachment specialists

SHOCKS are designed primarily for 'soft attachment'; spliced to a line end or lashed in place. The elongated attachment aperture is also ideal for webbing attachment, ensuring the intended orientation is maintained.

Virtually limitless applications

The applications for SHOCKS are virtually limitless, including numerous high performance dinghy and small sailboat rigging applications including tweakers, vangs, trapezes, cunninghams, barber haulers and kite bridles. They are also handy on larger boats for uses such as lazy jacks, sail covers, tie-downs, ladder and motor hoists.

Hidden performance

At a mere 2.5g (0.1 oz), SHOCKS are outstanding performers in the strength and weight stakes. The clever design and exacting finishing also provide excellent free running at moderate changes of angle. Small & hi-tech line specialists SHOCKS accept lines from 1.4mm (1/16") up to 8mm (5/16") and function just as well with hi-tech uncovered braids as with traditional double braids.

Features:

• Performance & versatility
• Ultra lightweight

• Ultra compact
• Durable
• Color coded
• Impact resistant
• Small line optimised
• High load capacity

• Poor alignment tolerant
• Soft attachment compatible

• Grit & salt resistant

Applications:

Unlimited uses, including kitesurfing, paragliders, sports kites, power kites, stunt kites, depower kites, traction kites, for deflection or purchase system on control lines

Materials:

Anodized Aluminum

Specifications:

Rope Ø:1.4mm-5mm(1/16" - 3/16")

Height:8.5mm(5/16")

Width: 14.9mm(9/16")

Length:22.9mm(7/8")

M.W.L.:175kg(385lbs)

B. L.:350kg(770lbs)

Weight:2.5g(0.01oz)

The Ronstan Shock RF8080R-2 is a sheaveless block designed for high-load capacity in applications where traditional bearing systems may be compromised by environmental factors like sand and grit. Constructed from anodized aluminum, these units are maintenance-free and offer durability without moving parts. They are engineered for soft attachment, primarily through splicing to a line end or lashing, and feature an elongated aperture suitable for webbing to maintain orientation. This product is intended for IT hardware resellers supporting clients in specialized fields requiring robust, lightweight rigging components. It addresses the need for reliable line deflection and purchase systems in environments where regular maintenance or flushing out of bearing systems is not feasible. The design is compatible with lines ranging from 1.4mm to 5mm (1/16" - 3/16"), accommodating both high-tech uncovered braids and traditional double braids. Each unit weighs 2.5g and offers a maximum working load of 175kg.
