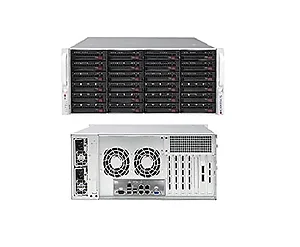

CSE-846BE1C-R1K23B(3YR) - Supermicro Case CSE-846BE1C-R1K23B 4U 24x3.5 inch Hot-Swap SATA/SAS 1200W RPS ATX/ Extended AT

Form Factor
4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10") Processor Support
Single and Dual Intel and AMD processors Available Color:
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
24 x 3.5" hot-swap drive bay Backplane
24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives
Optional 2 x 2.5" hot-swap drive bay
Optional 1 x 3.5" internal fixed drive bay
Optional 2 x 2.5" internal fixed drive bay Front Panel
Buttons : Power On/Off button
System Reset Button
LEDs: 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED Motherboard (for CSE- 846BE1C-R1K23B)
X11SPH-nCTF
H11DSI-NT
X11SPH-nCTPF
X11DPH-T
X11DPH-I
X11DPH-TQ
H11DSi
H11SSL-NC
H11SSL-C
H11SSL-i Servers (for CSE- 846BE1C-R1K23B)
6049P-E1CR24L6049P-E1CR24H Systems Cooling
Fans : 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 80mm rear hot-swap exhaust PWM fan(s) System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range: 5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range : 5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
Power Efficiency: 96%
Total Output Power and Input: 1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc
AC Input Frequency: 50-60Hz Output Type: Backplanes (gold finger)
+12V: Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)
+5Vsb: Max: 4A / Min: 0A
Power Distributor: PDB-PT846-2824
Certification: Titanium Certified Regulatory (Power Supply)
Power Supply Safety / EMC: BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL Item Dimension ( L inch x W inch x H inch)
14 x 35 x 27
Weight
96.00lb
Warranty Information
3 Year
